Zing Ear ZE-268s1 3 Speed 4 Wire Ceiling Fan Rotary Switch

$9.95$13.95

  • Function: OFF, High, Medium, Low
  • Positions: OFF, L-1, L-2, L-3
  • Electrical rating: 6A 125VAC – 3A 250VAC
  • UR (UL) recognized – E89885
  • CSA approved
SWITCH COMPATIBILITY

Compatible with:

  • Zing Ear ZE-208s E89885
  • Zing Ear ZE-208D (Black/White)
  • Zing Ear ZE-208s-A01
  • Satco 80-1983
  • Fransco S01 4-hole
  • KTE 3089T (Circuit R)
  • GC35-0867
  • Sun-Lite SL-A-200A
  • Westinghouse 77021
  • Wu Pin LJY209A
  • Fantec Cam-01
  • Harbor Breeze 33905
  • GENG JENG E90246 4-wire
  • Shine Top LS-102-01
  • Wu Pin LJY-280A 4-hole

**If the black wire is attached to terminal “3” on the existing switch, then this switch is not compatible

**Terminal number sequence on the existing switch should match this switch: L-1-2-3 counterclockwise direction, otherwise this switch is not compatible

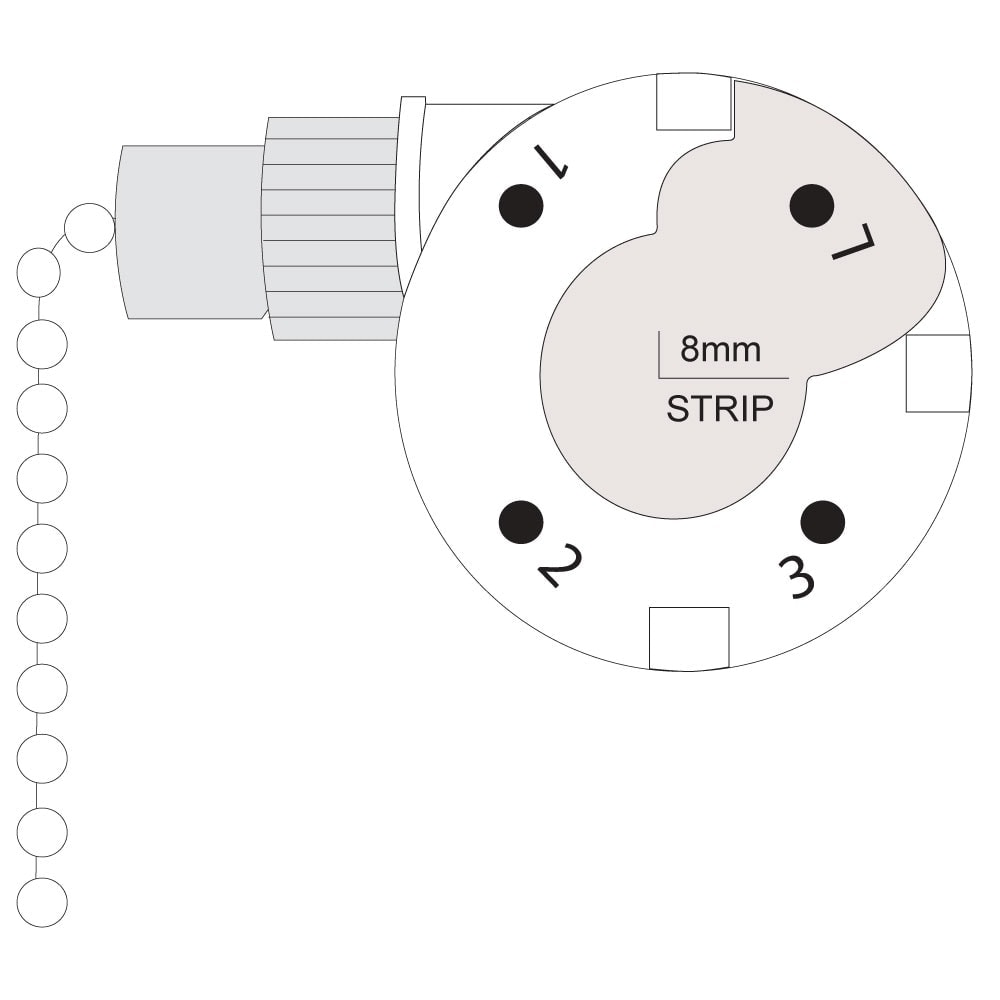

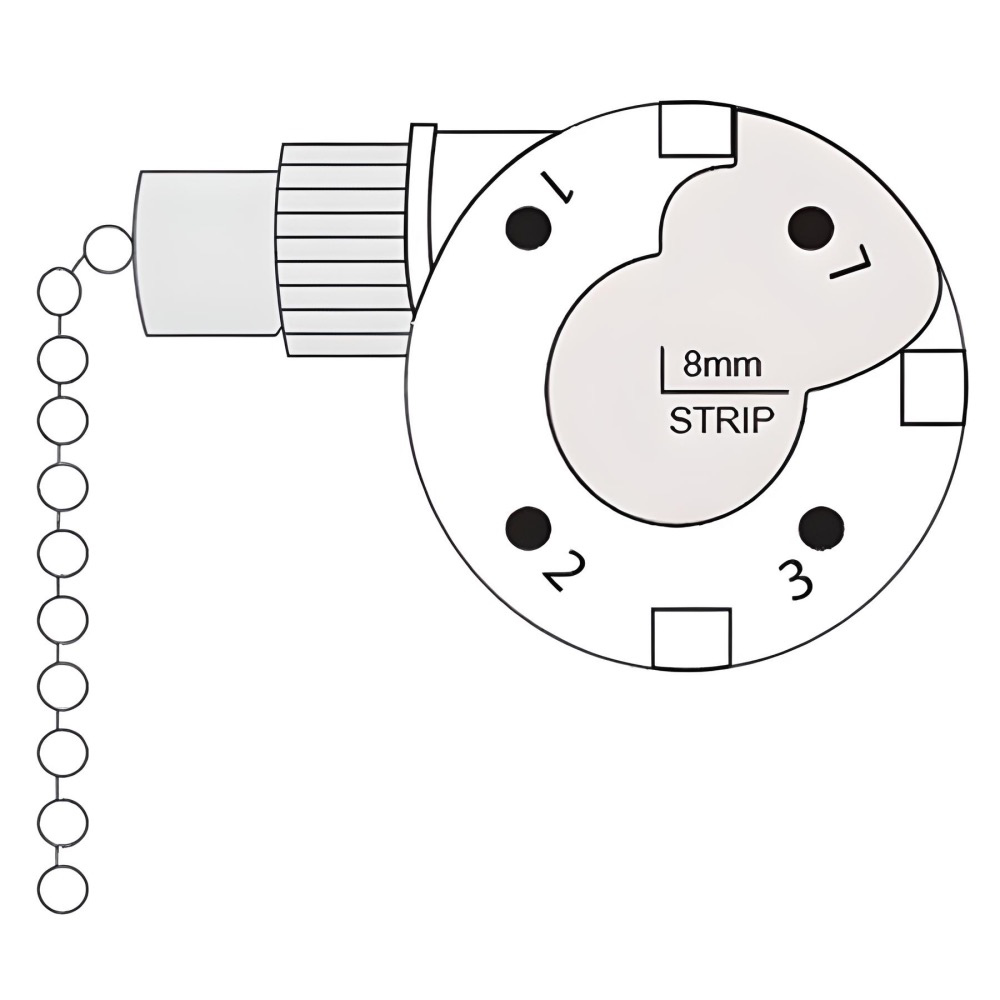

WIRING INSTRUCTIONS
Click here for wiring instructions and diagrams
(5 customer reviews)
More options
Clear

Free US shipping with orders over $14.98

  • 90-Days no questions asked return policy
  • 1-Year warranty
  • Top-notch technical support

Are you trying to repair your broken ceiling fan? The Zing Ear ZE-268s1 3-speed pull chain ceiling fan switch is just what you need. This 4-wire fan switch provides 3 speeds: high, medium, and low.

  • Fits many ceiling fans including Casablanca, Hunter, Westinghouse, Harbor Breeze, Hampton Bay, etc.
  •  Can be used in exhaust fans, appliances, and any other application that requires a 3-speed control switch

Zing Ear ZE-268s1 is Compatible with

  • Zing Ear ZE-208s E89885, ZE-208D (Black/White) and ZE-208s-A01
  • Satco 80-1983, Fransco S01 4-hole, KTE 3089T (Circuit R), GC35-0867
  • Sun-Lite SL-A-200A, Westinghouse 77021, Wu Pin LJY209A
  • Fantec Cam-01, Harbor Breeze 33905, GENG JENG E90246 4-wire
  • Shine Top LS-102-01, Wu Pin LJY-280A 4-hole
  • For more details: Compatibility guide page

Zing Ear ZE-268s1 Specifications

  • Electrical rating: 125V/6A or 250V/3A
  • Settings: OFF, L-1, L-2, L-3 (OFF, High, Medium, Low)
  • Dimensions (approximate): 1.5 x 1.5 x 0.75 inch
  • Finish: Available in Brass, Antique Brass, Nickel, and Black Nickel
  • Material: Plastic Body
