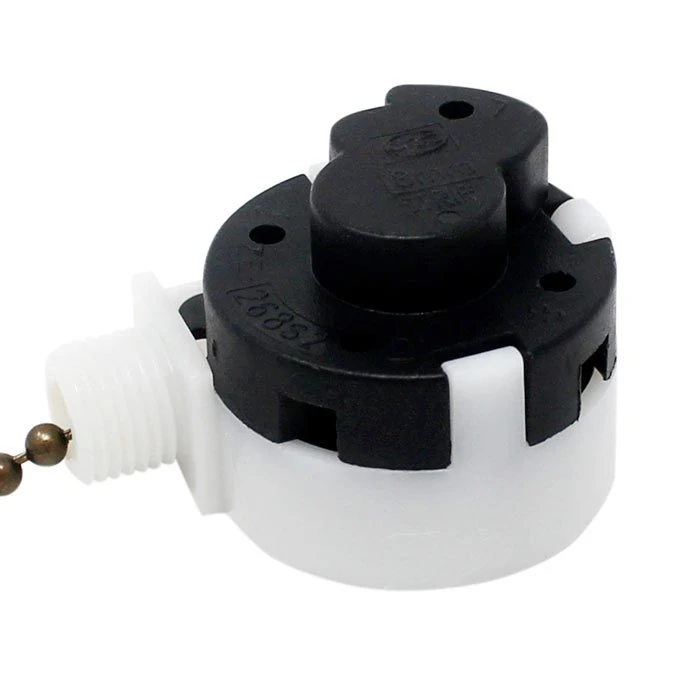

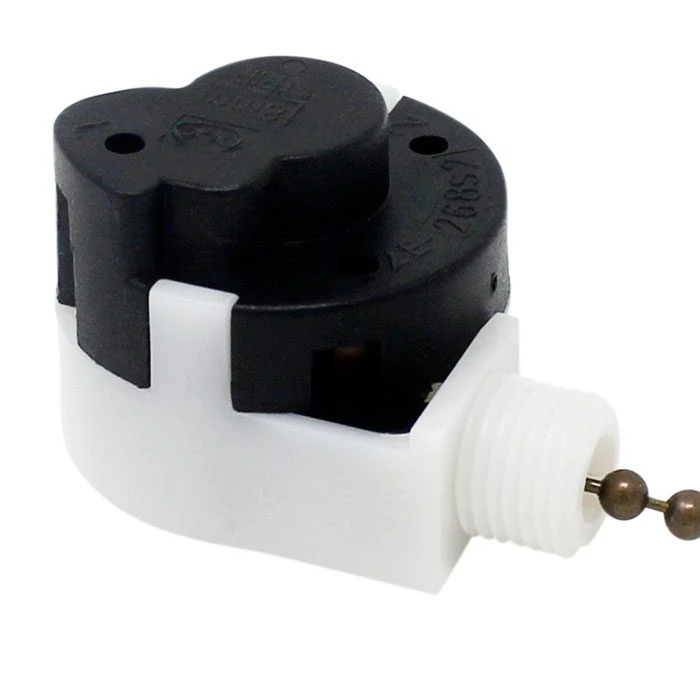

Zing Ear ZE-268S2 3 Speed 4 Wire Ceiling Fan Pull Chain Switch

$7.95 – $10.95

  • 90-Day returns
  • 1-Year warranty
  • Fast shipping
  • Function: Off, High=3-L-1-2; Med=3-L-2; Low=3-L-1
  • Electrical rating: 6A 125VAC – 3A 250VAC
  • UR (UL) recognized
  • CSA approved
SWITCH COMPATIBILITY

Compatible with:

  • Zing Ear ZE-208S-A04
  • Zing Ear ZE-208S (Gray/Gray)
  • Zing Ear ZE-208S (Gray/Black)
  • Zing Ear ZE-208S2
  • Zing Ear ZE-238S
  • KTE E87438 3089T Circuit B (103)
  • KTE E87438 308-A
  • Sun-Lite SL-A-200C
  • CAM-05 (Gray/Black)
  • Shine Top LS-102
  • Wu Pin LJY-280A
  • Westinghouse 77288 & 77020

**If the black wire (AC line) is attached to terminal “L” on the existing switch, then this switch is not compatible

**The black wire (AC line) should be attached to terminal “3” on the existing switch, otherwise this switch is not compatible

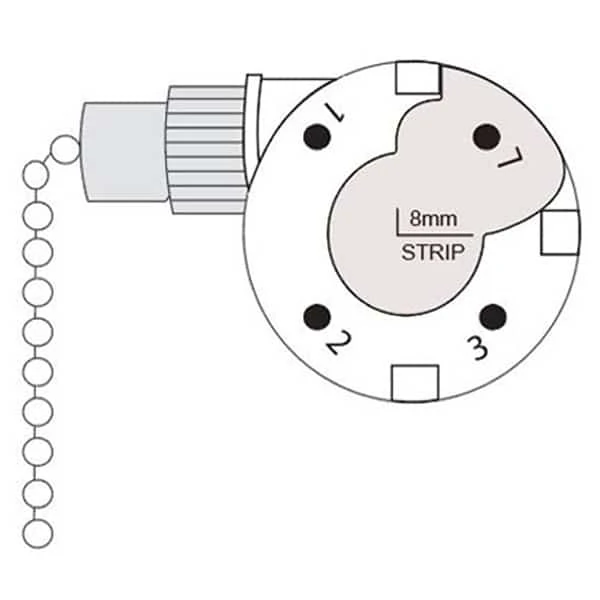

**Terminal number sequence on the existing switch should match this switch: L-1-2-3 counterclockwise direction, otherwise this switch is not compatible

WIRING INSTRUCTIONS
Click here for wiring instructions and diagrams
Questions? We Are Here To Help

Zing Ear ZE-268S2 ceiling fan pull chain switch control fan speed rotation with three-speed settings. This switch is compatible with many ceiling fans including Hunter, Hampton Bay, Westinghouse, Litex, Minka, Casablanca, Harbor Breeze, etc.

ZE-268S2 ZH is Compatible with

  • Westinghouse 77288 & 77020
  • Zing Ear ZE-208S-A04, ZE-208S (Gray/Gray), ZE-208S (Gray/Black), ZE-208S2, and ZE-238S
  • KTE E87438 3089T Circuit B (103), KTE E87438 308-A, Sun-Lite SL-A-200C
  • CAM-05 (Gray/Black), Shine Top LS-102, Wu Pin LJY-280A

Zing Ear ZE-268S2 Specifications

  • Electrical Rating: 6A 125VAC – 3A 250VAC
  • Function: Off, High=3-L-1-2; Med=3-L-2; Low=3-L-1
  • Material: Plastic Body
