Zing Ear ZE-109 Wiring Instructions


  • Before rewiring any ceiling fan, turn off electrical current at source by turning off circuit breakers.
  • CAUTION: Failing to disconnect power supply to ceiling fan may cause serious injury or death.

ZE-109 Wiring Instructions

Wiring Steps For Ceiling Fans:

  1. Make sure the existing light switch has 2 wires. If there are 3 wires, A 3-wire switch is required.
  2. Cut the two wires from the existing light switch using wire stripper.
  3. Strip black wires around 1/2 inch.
  4. Connect one black wire from the light switch to one black wire from the ceiling fan.
  5. Connect the other black wire from the light switch to the other black wire from the ceiling fan.
  6. Secure connection between the wires using wire connectors by twisting them in a clockwise (Connection of wires must be secured, otherwise, it may result in fire hazard, electrical shock or serious injury).

Wiring Diagram For Lighting Fixtures:

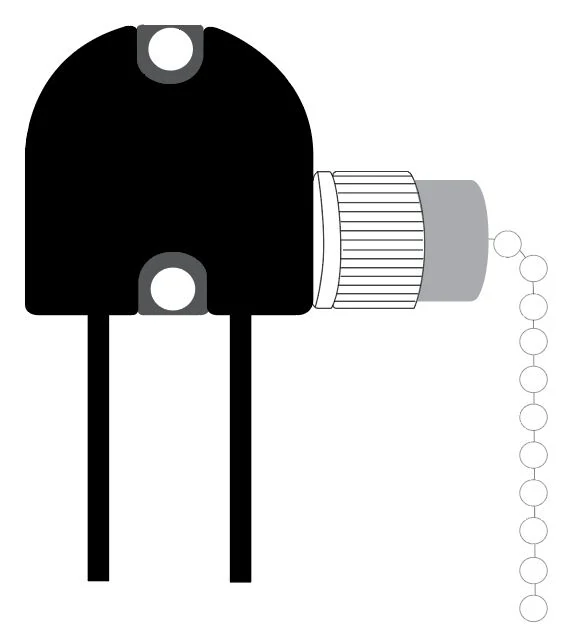

Zing Ear ZE-109 Wiring Diagram

Useful Links:

  • Click here to contact us.
  • Click here to purchase this 2 wire light switch.


  1. Which wire is hot and which is the ground? The switch has 2 black wires not different colors to distinguish between hot and ground

    1. Customer Support


      The wires on the switch are interchangeable that is why they are both black.

      Thank you

  2. howard jones

    hi, dose hot have two black wires coming from ceiling fan,has a black and white

  3. david cochran

    I have replaced my 3 speed -4 wire ceiling fan switch with your product I only have high and medium speeds
    and no slow or off. I have Black, Gray, Brown and Green wiring. the switch has L-1-2-3. I put the Black in L, the Gray in #1, the Brown in #2, and the Green in #3. I cant seem to be able to switch wires to correct problem.. Any helpm would be really appreciated..

    1. Customer Support

      Hi David,

      Please contact us via
