SNR-100W Photocell Wiring Diagram

Before You Start:

  • Before re-wiring the lamp, switch off electrical current at source by turning off circuit breakers.
  • CAUTION: Failure to disconnect power supply to the lamp may cause severe injuries or death.

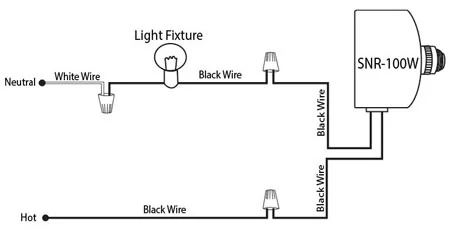

How To Wire a Photocell (Model SNR-100W):

snr-100w photocell sensor wiring diagram

Wiring Notes:

  1. Do not install the photocell eye facing light.
  2. Make sure to install the photoelectric switch in a dry enclosure.

Useful Links:

  • Click here to contact us.
  • Click here to purchase this photoelectric sensor.
