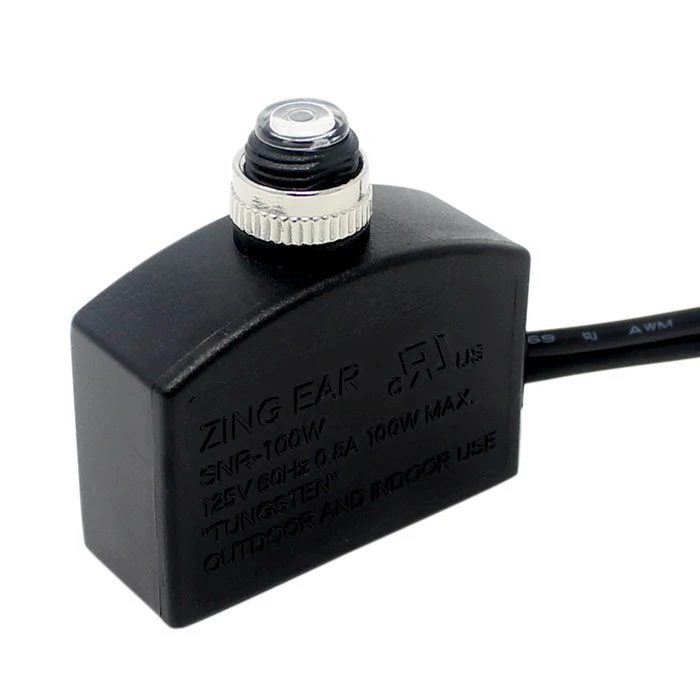

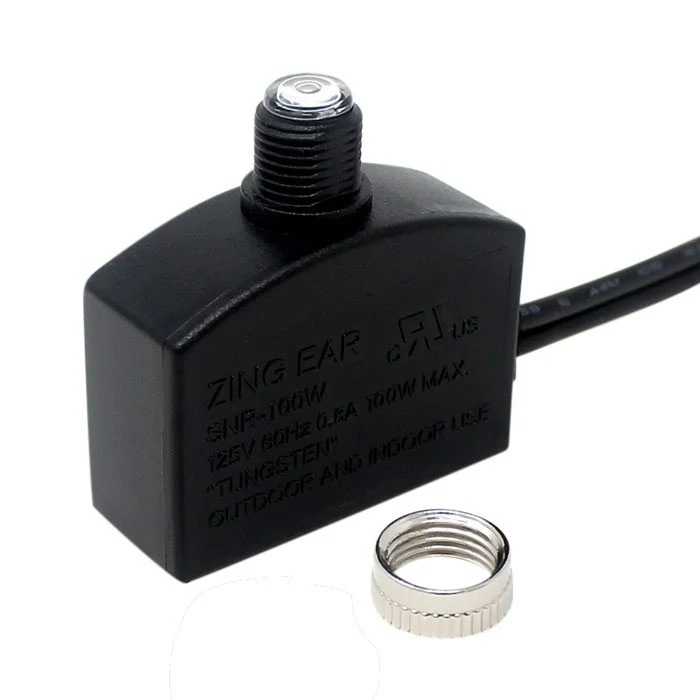

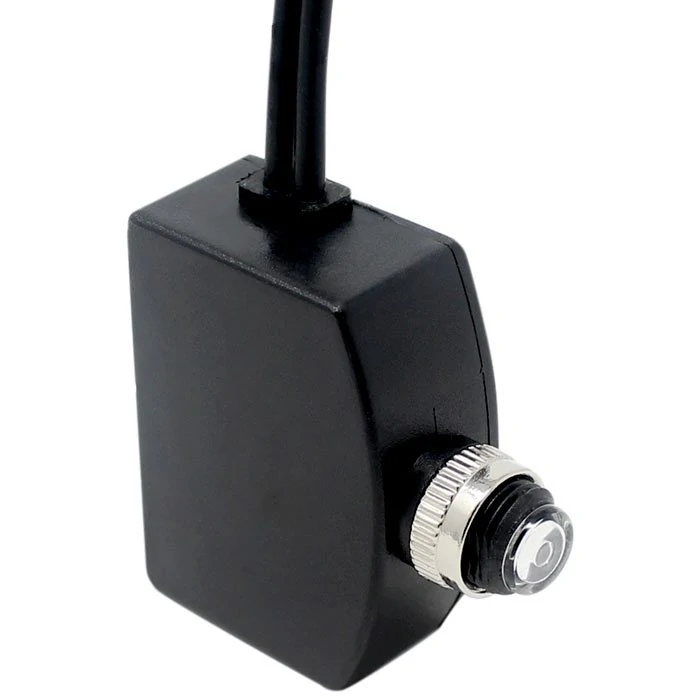

SNR-100W Photocell Sensor Light Switch For Outdoor Lamps


Zing Ear SNR-100W photoelectric switch is a light-sensitive switch that turns a lighting system on at dusk and off at dawn. It works with incandescent and halogen light bulbs.

In stock

SKU: SNR-100W Category:


Zing Ear SNR-100W photocell sensor light switch is a light-sensitive switch that turns the light on at dusk and off at dawn. It is easy to install and can be implemented to automate any lighting system. This dusk to dawn sensor comes with two leads 4″ each, 3 wire connectors and well-documented wiring instructions for quick and safe installation.

To comply with safety regulations, the SNR-100W photoelectric sensor is UL approved in USA and Canada.

SNR-100w Photocell Sensor Specifications:

  • photocell switch works with incandescent, halogen, dimmable CFL, and dimmable LED light bulbs
  • Photocell sensor for outdoor and indoor lighting
  • Used in a lantern or as a lamp post photocell
  • Electrical details: 125V 60Hz 0.8A 100w photoresistor
  • Lamp post hole size required: 7/16 inch.
  • Leads length: 4 inches
  • Leads color: White, and Black

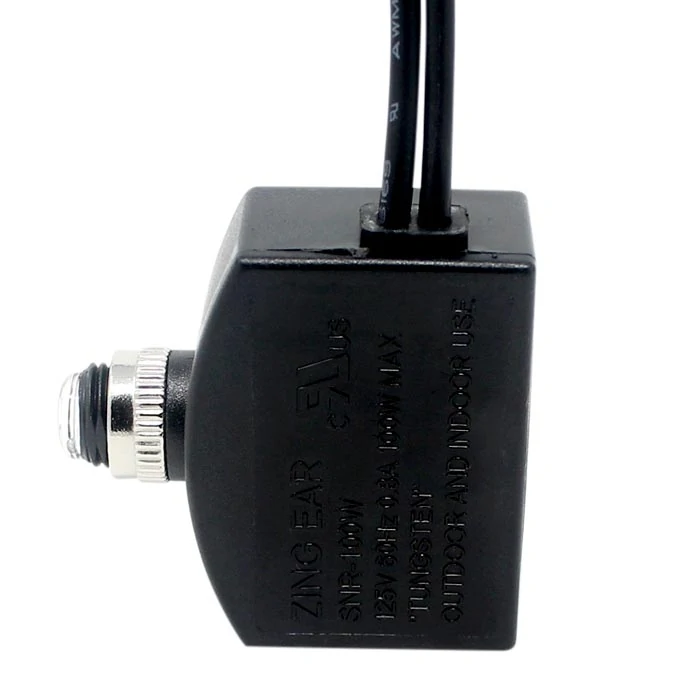

  • UL approved under license number WJCT2.E328151 (USA)
  • UL approved under license number WJCT8.E328151 (Canada)
