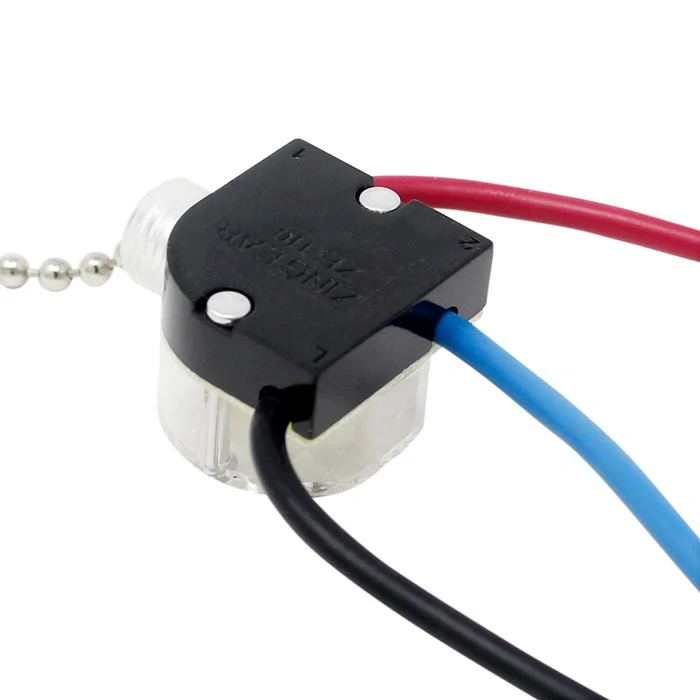

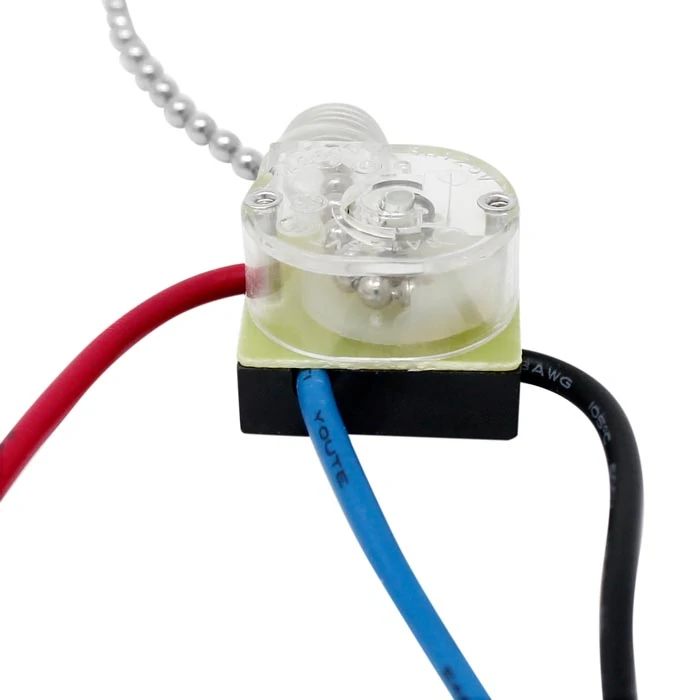

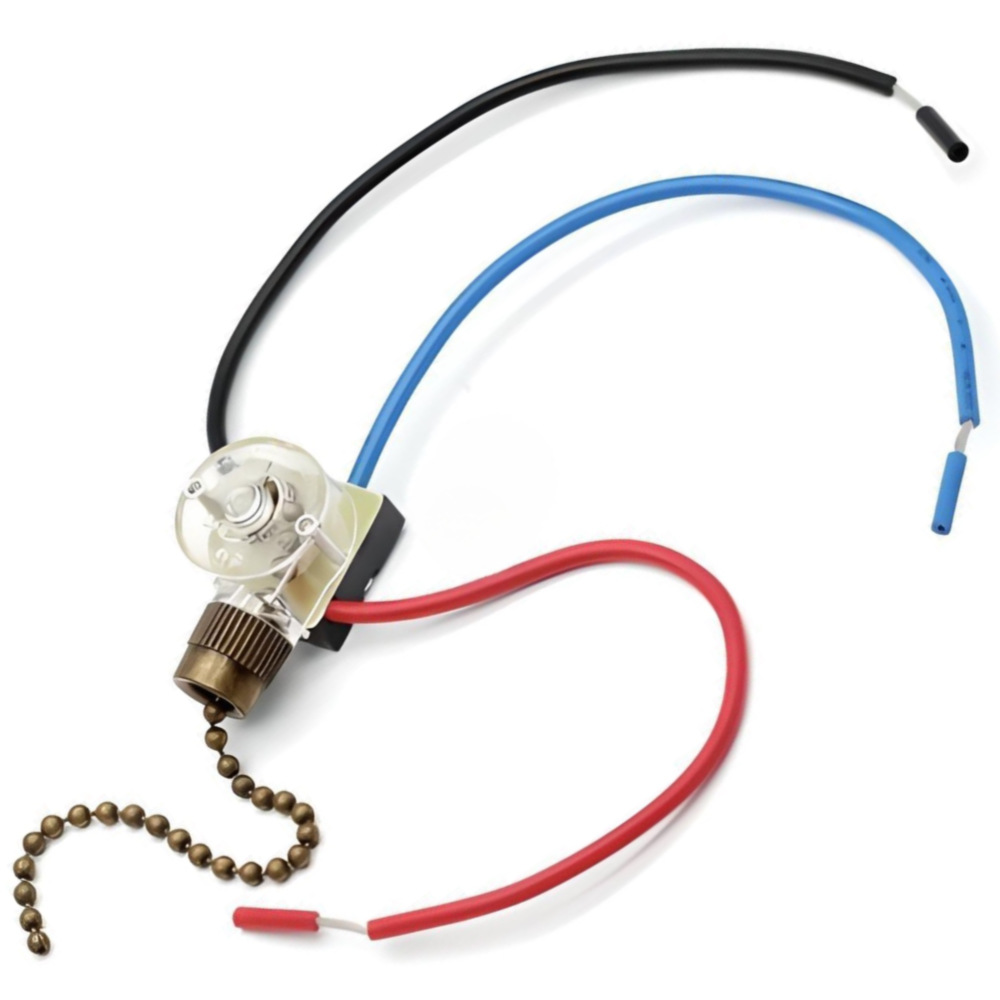

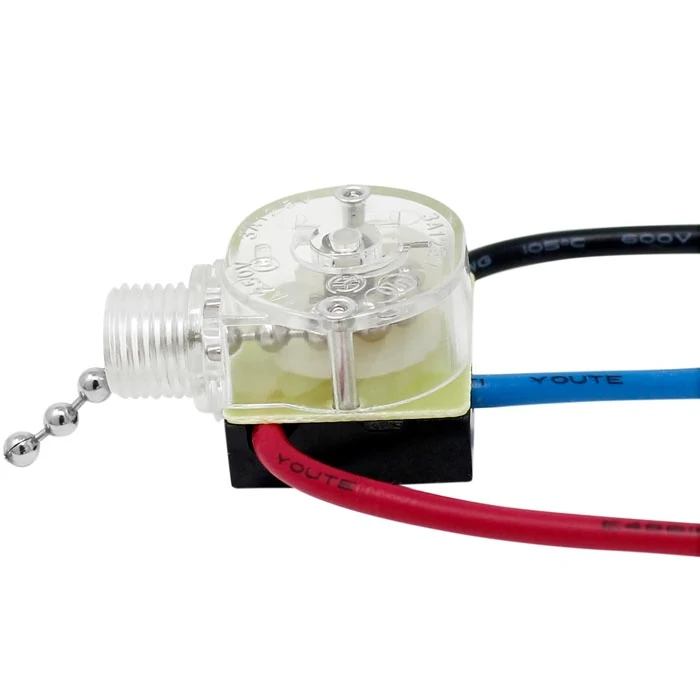

Zing Ear ZE-110 3-Wire 3-Way 2-Circuit 4-Position Pull Chain Light Switch

$9.95

  • Three Wire – Three Way – Two circuit light switch
  • Commonly used in ceiling fans and lighting fixtures
  • 6A 125VAC – 3A 250VAC
  • Function: OFF, L-1, L-2, L-1-2 ( both lights off, one light on, other light on, both lights on)
  • UR (UL) recognized
  • CSA approved
SWITCH COMPATIBILITY

Compatible with:

  • Shine Top LS-302
  • Sun-Lite J-102
  • Gardner Bender GSW-39
  • Crest Healthcare Supply 1689-050
  • Harbor Breeze 10187
WIRING INSTRUCTIONS
Click here for wiring instructions and diagrams
LOOKING FOR A 2-WIRE PULL CHAIN SWITCH?
Please click here
More options
Clear

Free US shipping with orders over $14.98

  • 90-Days no questions asked return policy
  • 1-Year warranty
  • Top-notch technical support

Fix your ceiling fan with the Zing Ear ZE-110 3 wire fan light switch. It activates canopy lamps and ceiling fan lights by gently tugging the attached ball chain. Zing Ear ZE-110 is designed for 3 wire ceiling fans and lighting fixtures and is known as a 3-way switch because it controls fan light and lamps as follows: both lights off, one light on, other light on, both lights on.

This 3-way fan light switch is rated for 3 Amp at 250 Volt or 6 Amps at 125 Volts.

  • Compatible with 3 wire ceiling fans and lighting fixtures
  • Compatible with many ceiling fans including Harbor Breeze, Hunter, Hampton Bay, and Casablanca
  • Supports Incandescent, Halogen & LED light bulbs
  • Wiring instructions are included for easy installation

Zing Ear ZE-110 Specifications

  • Electrical rating: 6A 1250VAC – 3A 250VAC
  • UL approved
  • CSA certified
  • Function: 3-level light switch (OFF, L-1, L-2, L-1-2)
  • 3 Wire switch
  • Dimensions (approximate): 0.82 x 0.82 x 0.56 inch
  • Weight: 0.0732 lb
  • Finish: Available in Brass, Antique Brass, Nickel, and Black Nickel
  • Material: Plastic Body
