zing ear tp-01 touch lamp control front view

Zing Ear TP-01 Wiring Instructions

Before You Start:

  • Turn off electrical current at source by switching off circuit breakers.
  • Failure to disconnect power supply to the lamp or lighting system may cause electrical shock, fire hazard, severe injuries or death.

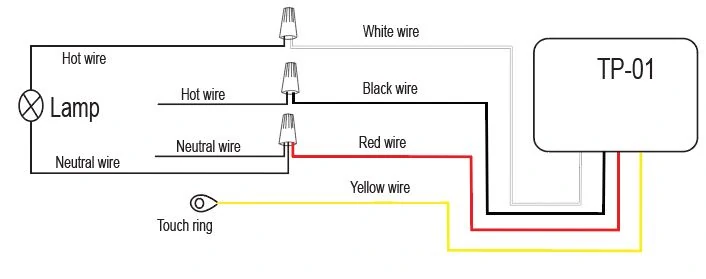

TP-01 Touch Lamp Control Wiring Diagram:

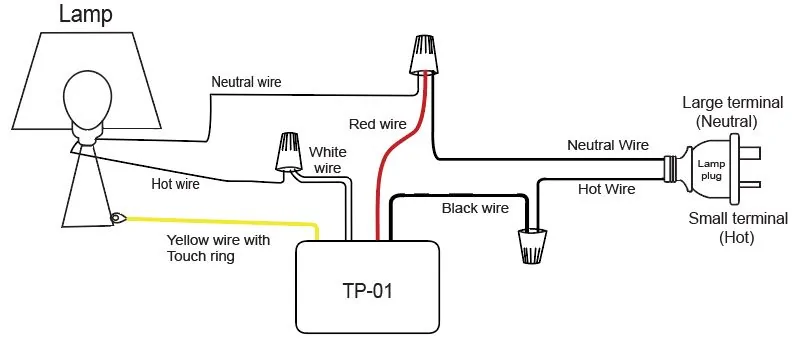

TP-01 Wiring Simulation:

Useful Links:

  • Click here to contact us.
  • Click here to purchase this touch lamp switch.
Share

2 thoughts on “Zing Ear TP-01 Wiring Instructions”

  1. I have a touch lamp with a Zing EAR TP-05 120v 300w control. The lamp does not turn off so I presume the touch control went bad. The lamp is rated for a 60watt incandescent bulb. Can I replace the touch unit with a Zing EAR TP-01 rated for less watts ? Also can I use a led or cfl bulb after I rep[lace the ZAP unit. Thank you

    Reply
