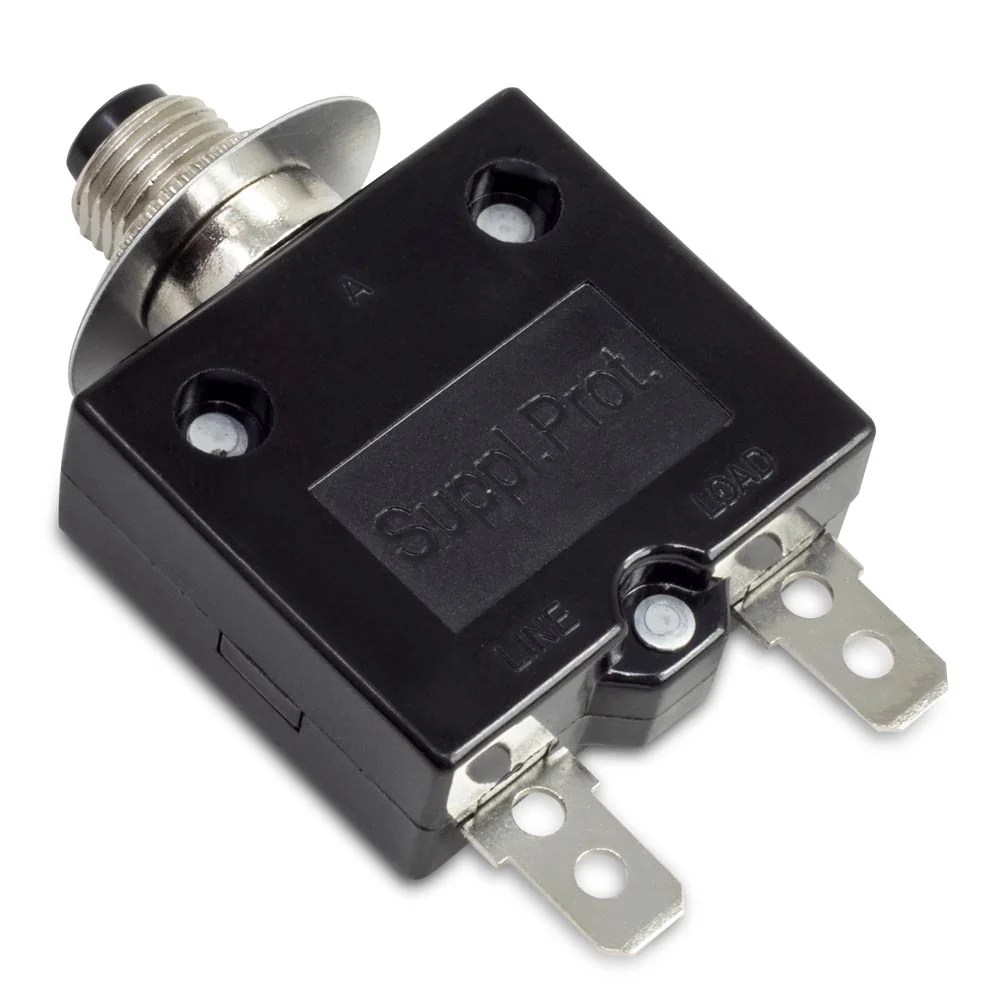

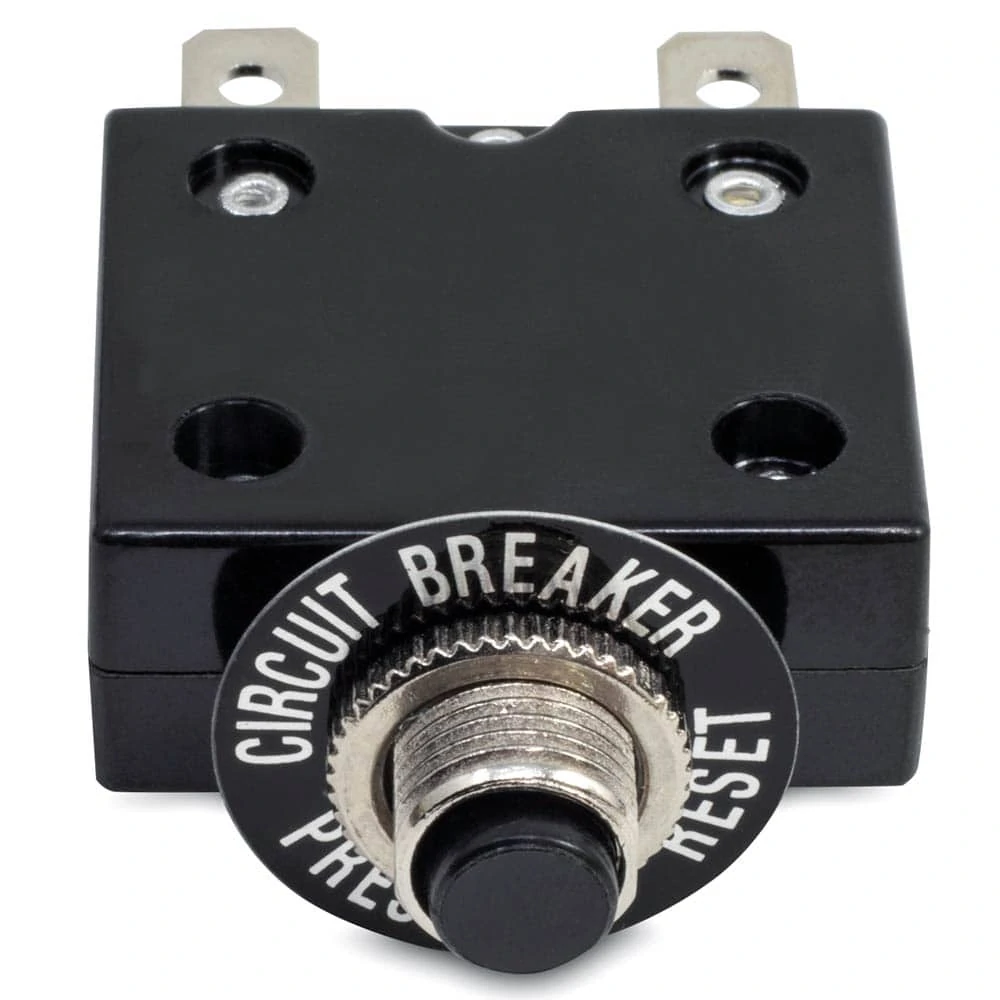

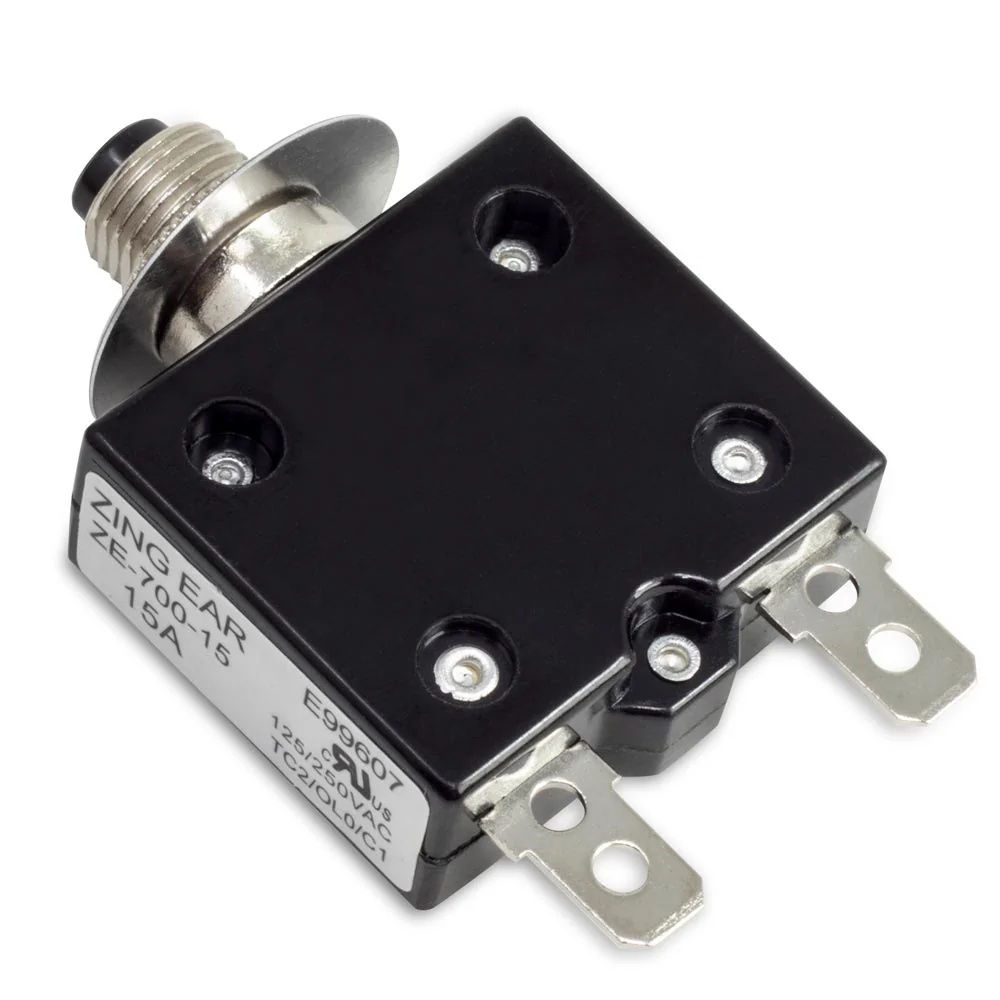

Zing Ear ZE-700-15 push to reset circuit breaker type rated at 15A 125/250VAC. This circuit interrupter replaces similar style miniature thermal switch breakers such as Yeu Sheng, Carling, Tyco P&B, Rong Feng, Airpax, JoeMex and Hosiden.
ZE-700-15 Applications
- Household and commercial appliances
- Transportation, telecommunications, marine, medical, and power supplies
- Power tools including table saws, sharpers, routers, bench saws.
- Exercise equipment
Zing Ear ZE-700-15 Specifications
- Model number: ZE-700-15
- Part number: ZE-700-15-MH
- Standard rating: 15A
- Input power: 122VAC / 250VAC / 50VDC
- Interrupt capacity: 125VAC x 1000A, 250VAC x 2000A
- Insulation Resistance: >100M Ohms
- Dielectric Strength: 1500 VAC / 1 Minute
- Contact Endurance: 125VAC x 150% of Rated Current – 500 Cycles

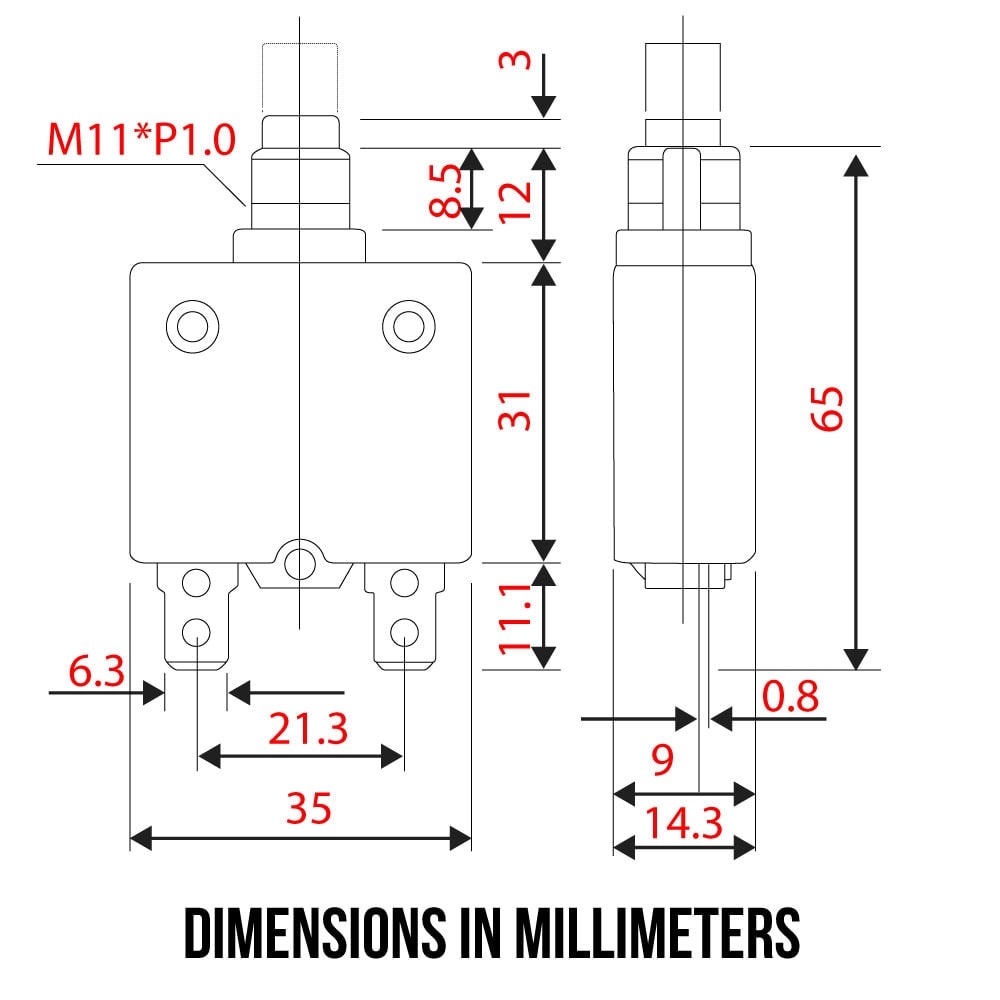

- Panel mounts in a 0.430 inch (11 mm hole)
- Function: manual push reset / Auto Reset
