Zing Ear WLD-07 Type R3L is used to limit the power on the ceiling fan light kit to 180W for all socket types by resisting the current of an electrical circuit. When the ceiling fan light kit (load) is consuming less than or equal to 180 Watts, the wattage limiter will not operate. If the load exceeds 180 Watts, it will switch off power to light kit for a moment.
This power limiter is compatible with many fans including: Hunter, Hampton Bay, Westinghouse, Litex, Minka, Casablanca, Harbor Breeze, etc.
Zing Ear WLD-07 R3L Switch Information
- Voltage: 120 VAC
- Model: WLD-07-R3L
- Compatible with Incandescent and halogen light bulbs
- Wire lead length: 6 inches
- Load Rating: 180 Watt – Acts when wattage limit exceeds 180 Watt
- Frequency: 60Hz

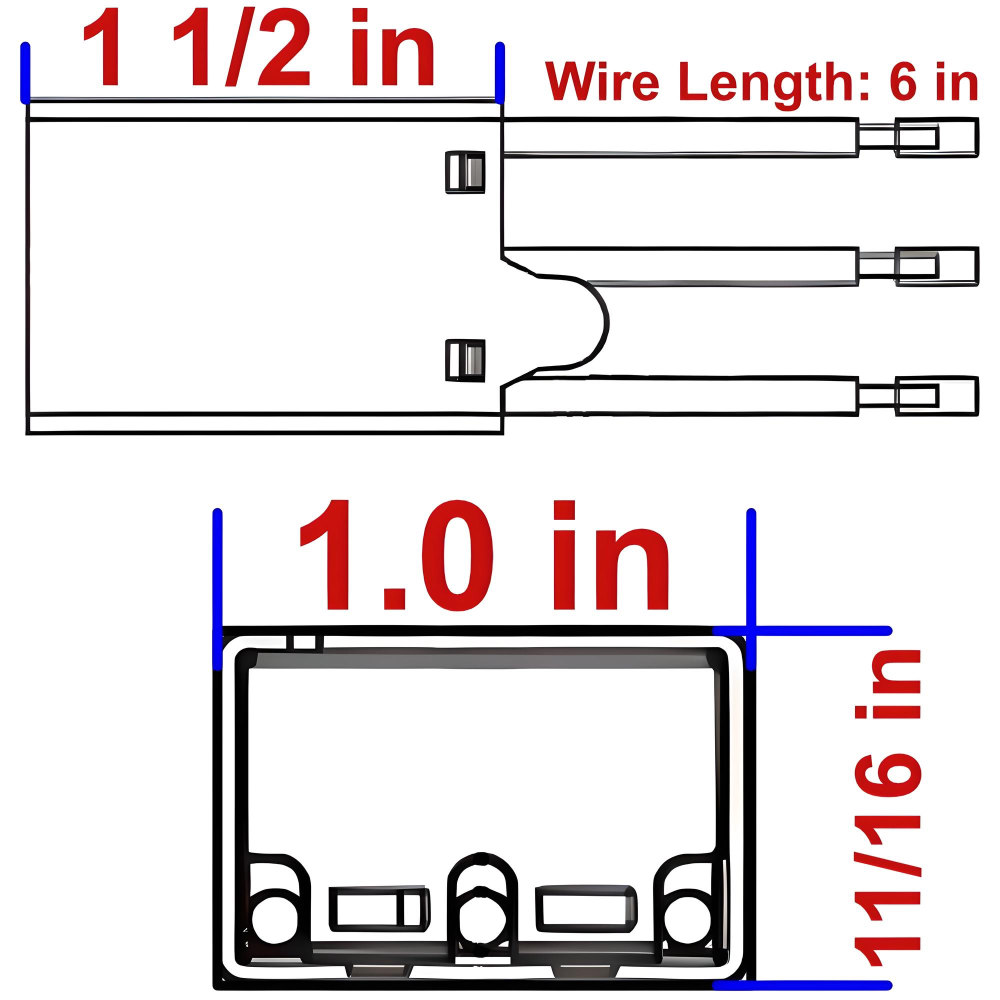

- Product dimensions: length= 1.5 inch / width: 1 inch / height: 11/16 inch
- UL approved
Useful links
- FAQ page
- Wiring diagram
This part fixed our ceiling fan I’m glad you produce this because hunter fan company does not even have or sell this part to fix their fans
Item was just what I needed to get the lights on my ceiling fan working again. Installation instructions were very basic, but covered exactly what I needed to do to replace my old, failed wattage limiter.
Easy to order, received promptly, exact replacement, easy to install.
The patient was healed!
Zing Ear WLD-07 R3L E136609 Ceiling Fan Wattage Limiter Replacement
Zing Ear WLD-07-R3L E136609 Ceiling Fan Light Wattage Limiter Replacement
Part was as listed and showed up on time
I was one happy camper, when I found this site! I couldn’t find anywhere this capacitor and my last resort was to buy a new fan .. thank you so much for the fast shipping too!
My light would flicker when I turn the switch and then goes off .. I exchange the switches and nothing..looked for capacitor for fan lights and nowhere I couldn’t find the same color wires like mine.. white blue and red.. saw this one here decide to try and it fixed the problem! The delivery was fast too! Thank you guys, one happy camper here!
Zing Ear WLD-07-R3 L E136609 Ceiling Fan Light Wattage Limiter
