fan light wattage limiter WLD-07-R3L

Zing Ear WLD-07-R3 L Wiring Diagram

Before You Start:

  • Before re-wiring the light fixture, switch off electrical current at source by turning off circuit breakers.
  • Failure to disconnect power supply to the lighting system may cause severe injury or death.

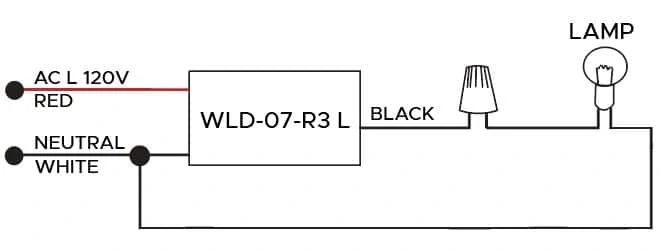

WLD-07-R3 L wiring diagram:

Useful Links:

3 comments

  1. I have a Honeywell four speed ceiling fan with the light kit not working, The light wattage limiter in my current ceiling fan light kit is rated at 180W/80 Hz. It has four lights structure. Will this work with it?

    1. Customer Support

      How many wires does the old limiter have? Is it wired the same as this one? The electrical rating of this wattage limiter can be found on the product page: https://www.ceilingfanswitch.com/product/fan-light-wattage-limiter/

  2. Correction: Model # EFU18588T (??), 60 Hz, 120V 180 Watt.
