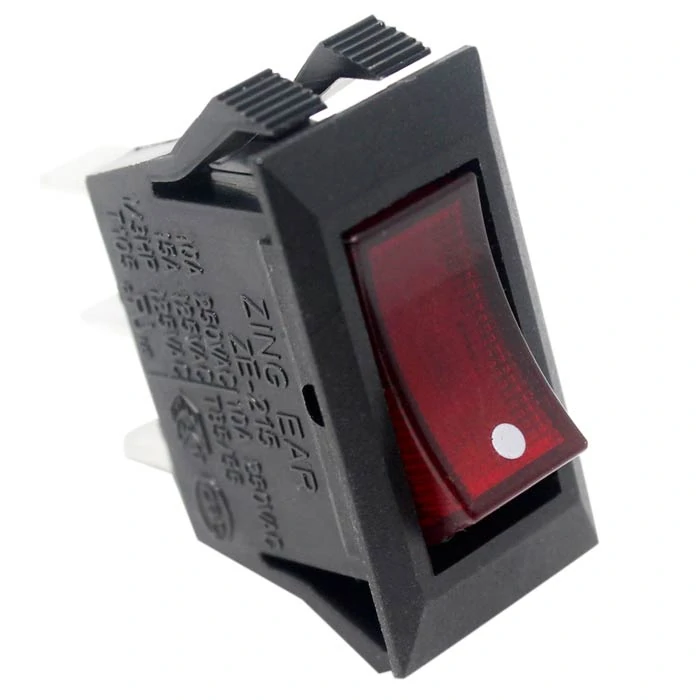

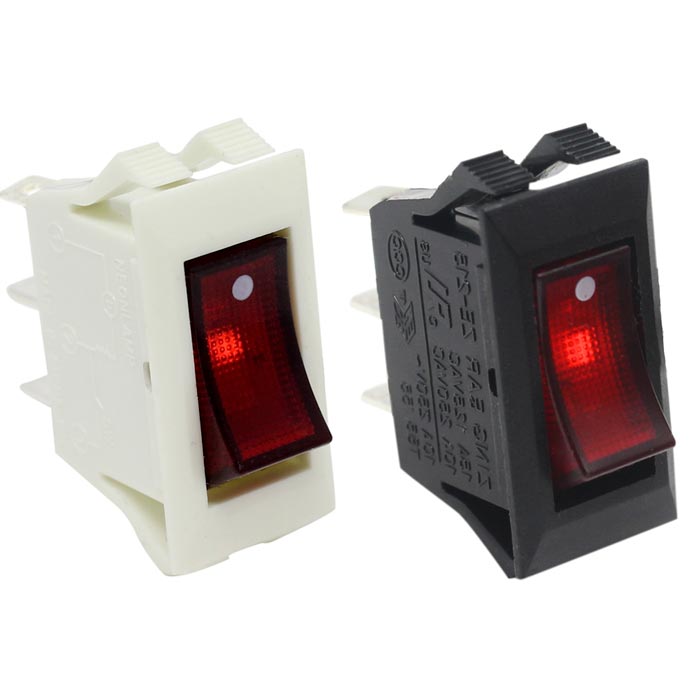

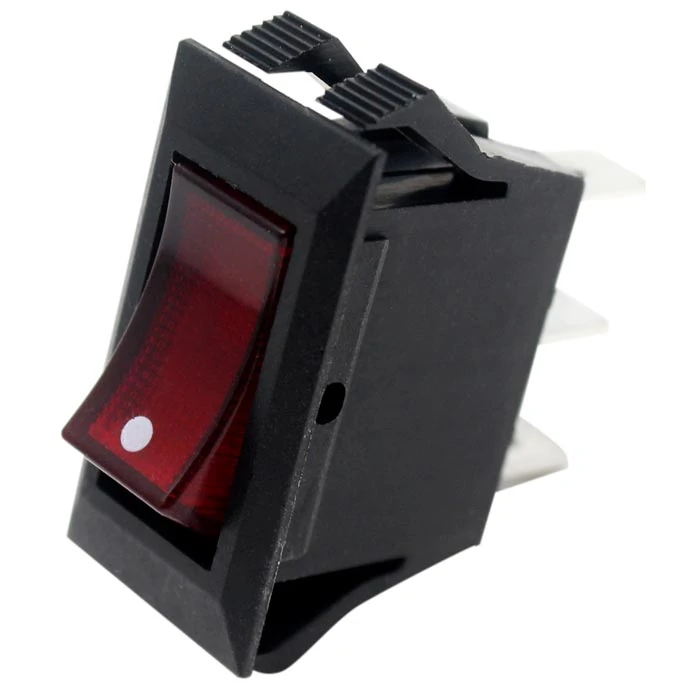

Zing Ear ZE-215 lighted rocker switch can handle 15A at 125VAC or 10A at 250VAC. It is small in size and easy to install with a snap-in design and has a single-pole, single-throw (SPST) contact form.
The newest model of ZE-215 has the circuit schematic as follows:
- Ground for the neon lamp
- Connects the accessory
- Power source
This 3-Prong Rocker Switch Replaces:
- Carling LRA911C, Gardner Bender GSW-42, Philmore 30-395, 30-390, and 30-556
- Rong Feng RF-1001, and RS-2-1P1T-L
- ZE-215-1 used in Twin Star and in Charmglow electric fireplace heaters
- Kema Keur SR-22 used in electric fireplace heater
Applications:
- Range hoods, machinery, and appliances
- Exercise equipment, vacuum cleaners, coffee makers, and handheld appliances
- Electric fireplace heaters (compatible with Twin Star model number 33E05-0546-CO511, 33E05-0521-C0436, 33e05-0519-A0891, 33E01, 23EF010GAA, 23EF003GAA, 23E05-0530, 18EF010GAA)
- Bench grinders
Zing Ear ZE-215 Lighted Rocker Switch Specifications:
- Function: On-Off

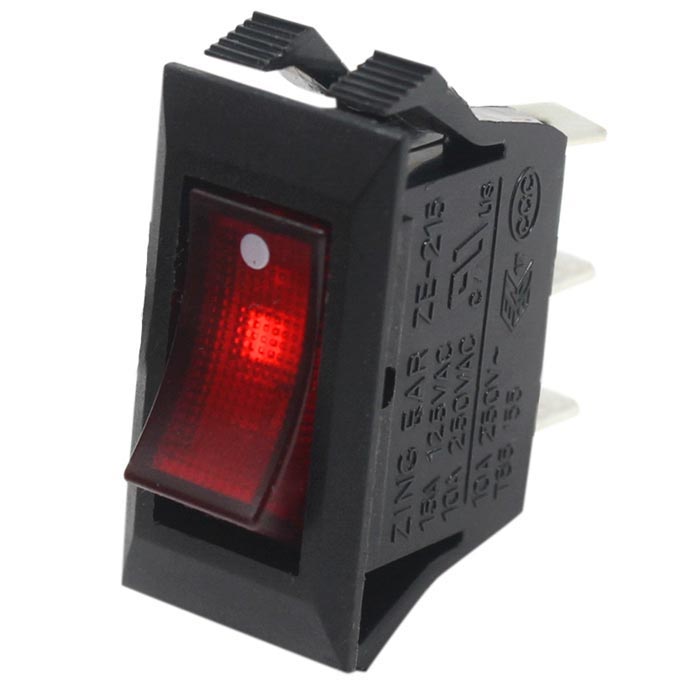

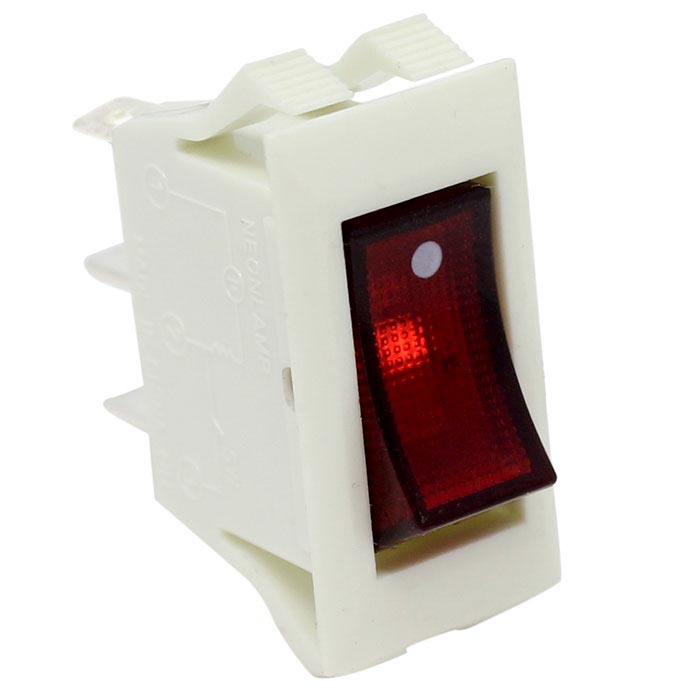

- Shows red light when on
- Press-in design
- Fits in 1/2 in. x 1 1/8 in. panel cutout

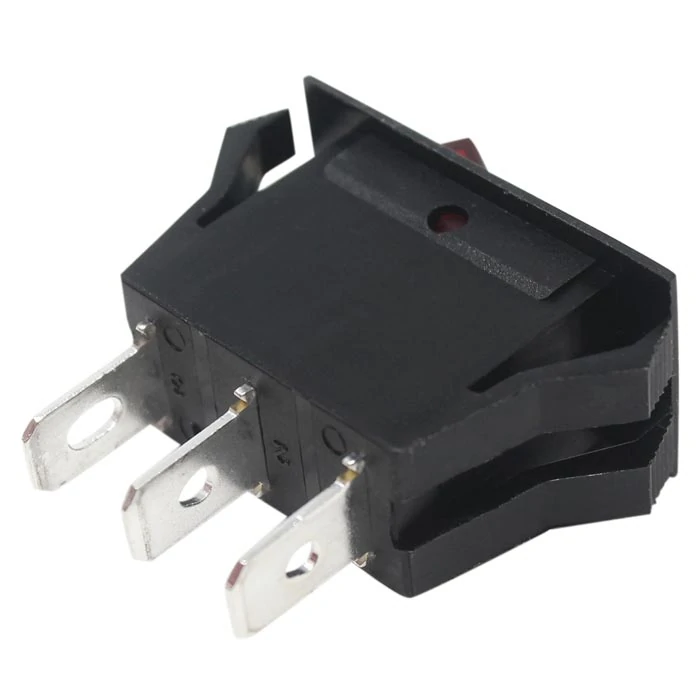

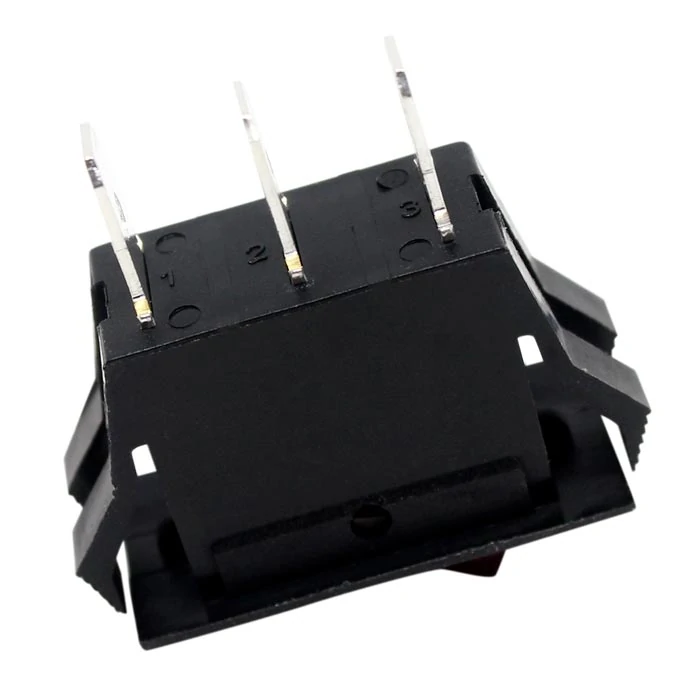

- Easy to install with 3 spade terminals
- Can be installed in enclosures or snap-in panels
- Single pole single throw construction – SPST
- Small in size- dimension: 35mm wide x 32mm tall (including pins)

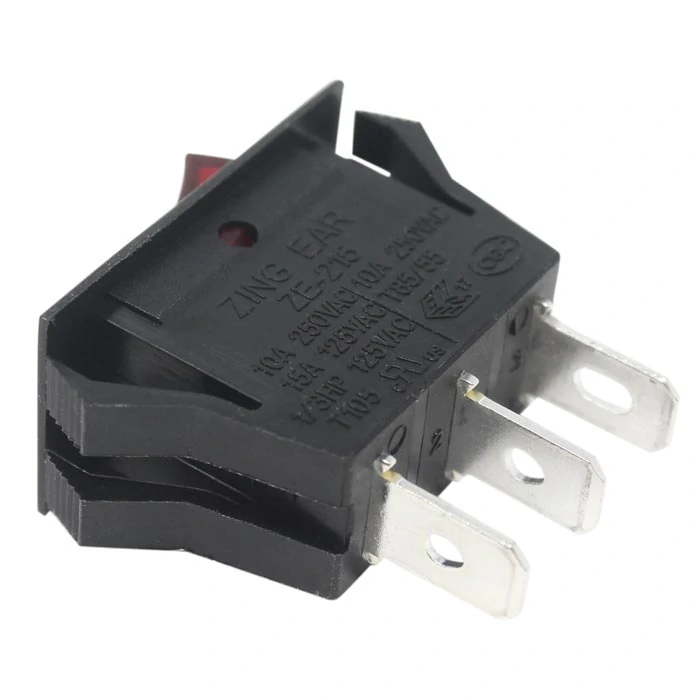

- Electrical Rating: 15A 125VAC – 10A 250VAC – 1/3HP 125VAC
- Material: Plastic body
