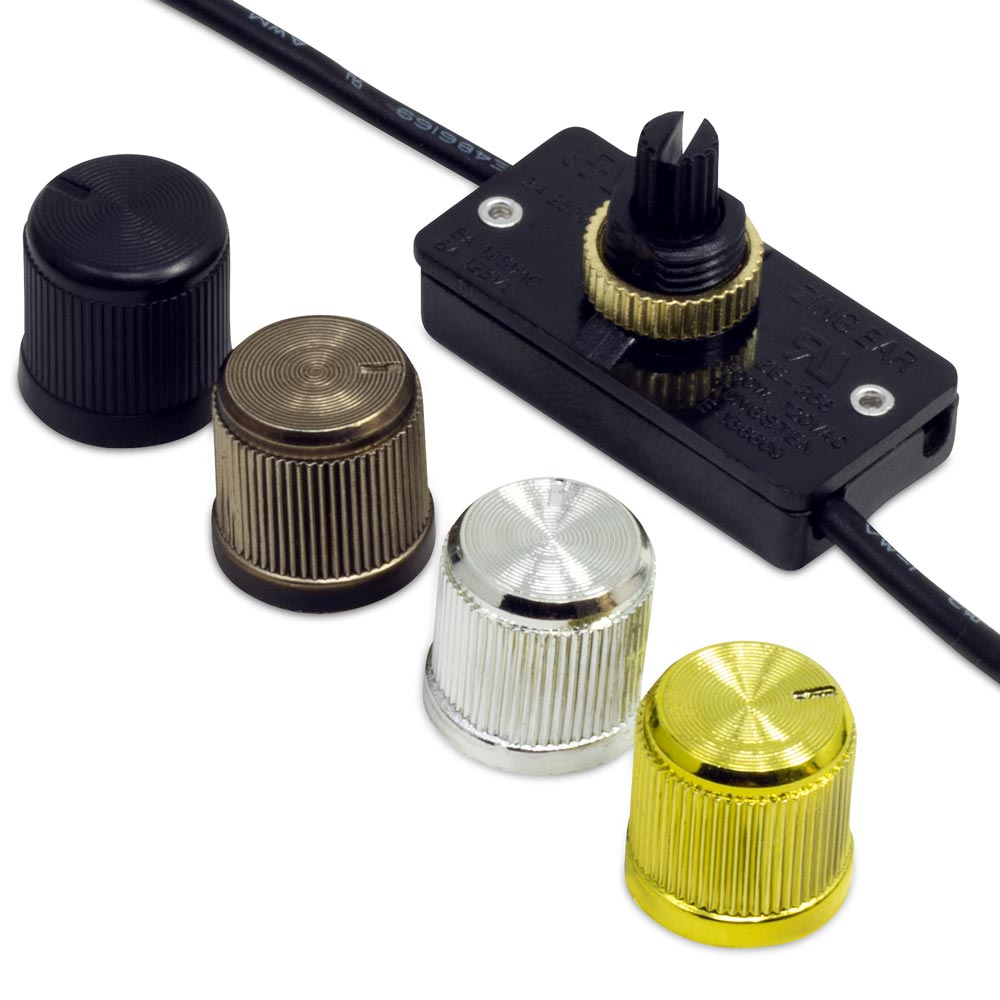

Zing Ear ZE-256 Inline Lamp Rotary Dimmer Switch 500W


  • Can be installed in narrow spaces
  • Function: Low-High-OFF
  • UL certified in North America
  • 18-AWG 3.5 inch leads
  • Compatible with: Incandescent, Halogen, and LED light bulbs


Zing Ear ZE-256 is an inline rotary dimmer switch for lamps. It provides 2 levels of lighting: Low and High and comes in a slim low profile design which allows the dimmer switch to be installed within narrow spaces. ZE-256 has UL approval for the United States and Canada.

Zing Ear ZE-256 supports halogen, and Incandescent light bulbs; however, it has been tested with LED lighting and it functioned the same as in other lights bulbs. Using this dimmer switch with Non-dimmable LED lights may cause the light bulb not to work at all and/or function improperly such as buzzing or flickering.

Zing Ear ZE-256 Specifications

  • Works with incandescent, halogen, and dimmable LED light bulbs (non-dimmable bulbs will not work)
  • Model number: ZE-256
  • Frequency: 60 Hz
  • Voltage: 120 VAC
  • Wattage: 500W
  • Function: Low-High-OFF / High-Low-OFF

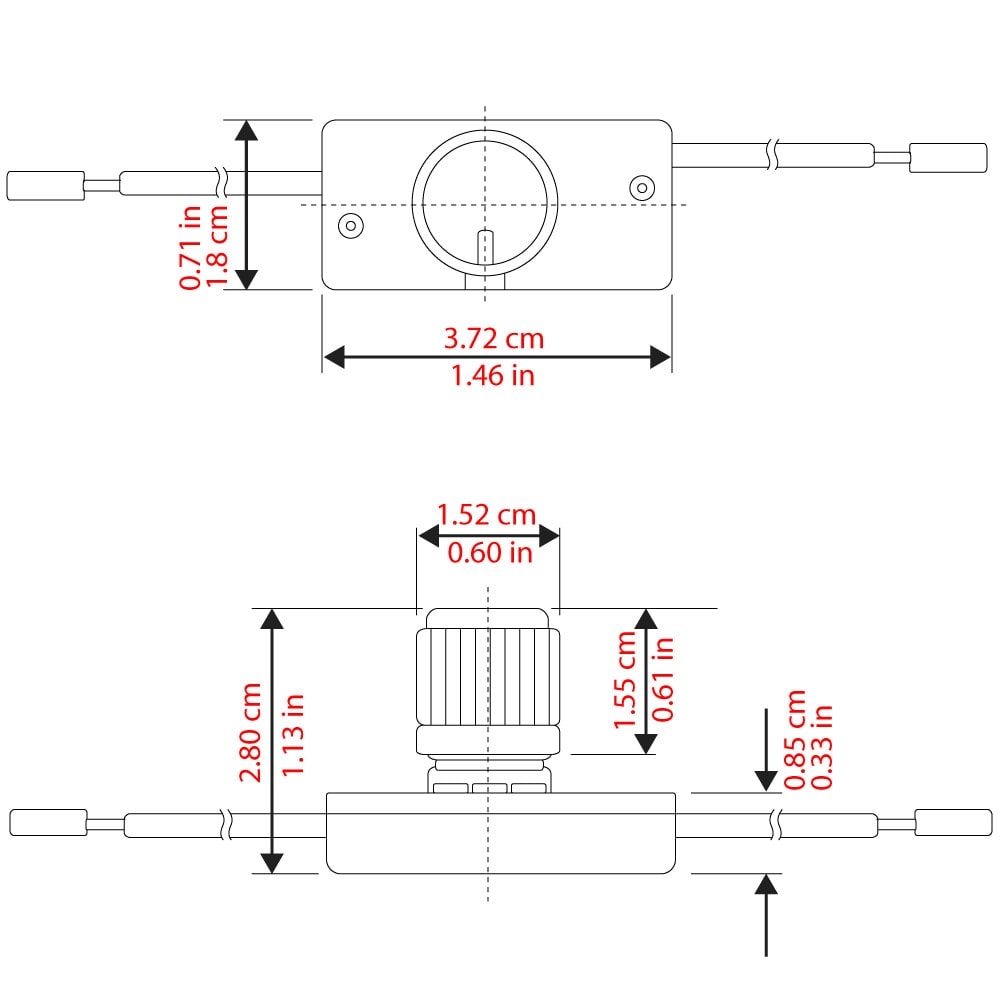

  • Product dimension (approximately): 3.72cm x 1.8cm x 0.85cm – 1.46″ x 0.71″ x 0.33″
  • Leads length: 3.5 inch
  • Material: Plastic
  • Indoor use only

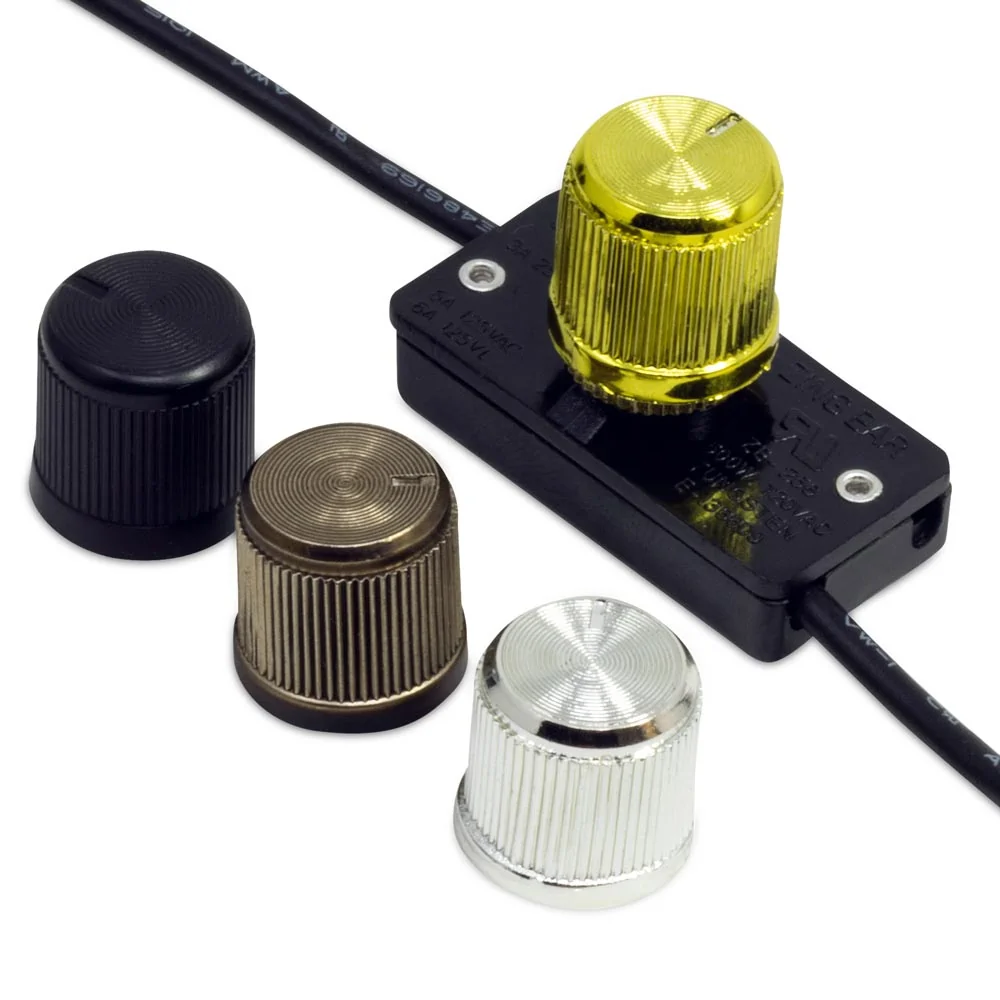

  • Finish: Turn knobs available in Brass, Antique Brass, Nickel, Bronze, and Black
  • UL recognized (USA). see license here ATNZ2.E136609
  • UL recognized (Canada). See license here ATNZ8.E136609

Package includes

  • ZE-256 Dimmer switch
  • Turn knob
  • Metal nut
  • 2 Wire connectors
  • Wiring instructions
