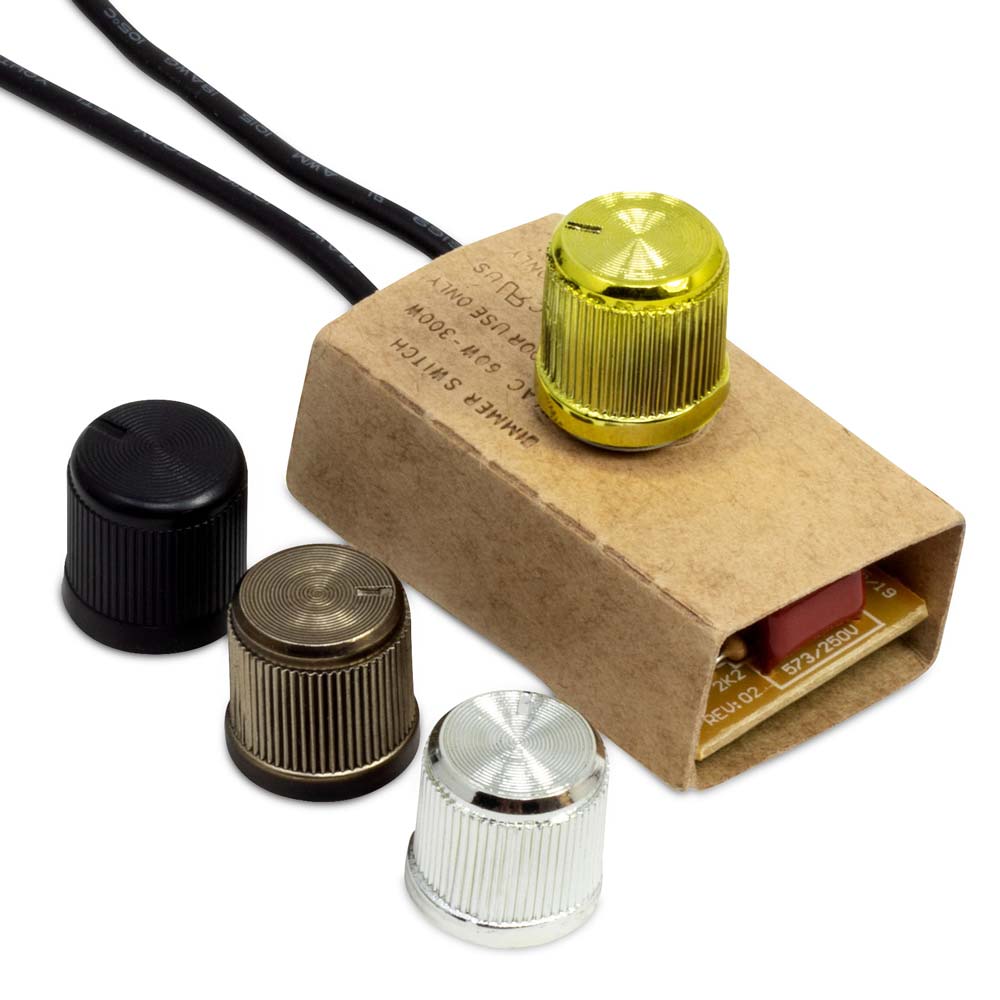

Zing Ear ZE-03 Inline Lamp Dimmer Switch 300W


  • Used in indoor table and floor lamps
  • Full range dimmer with ON-OFF settings
  • Works with Incandescent and Halogen lighting

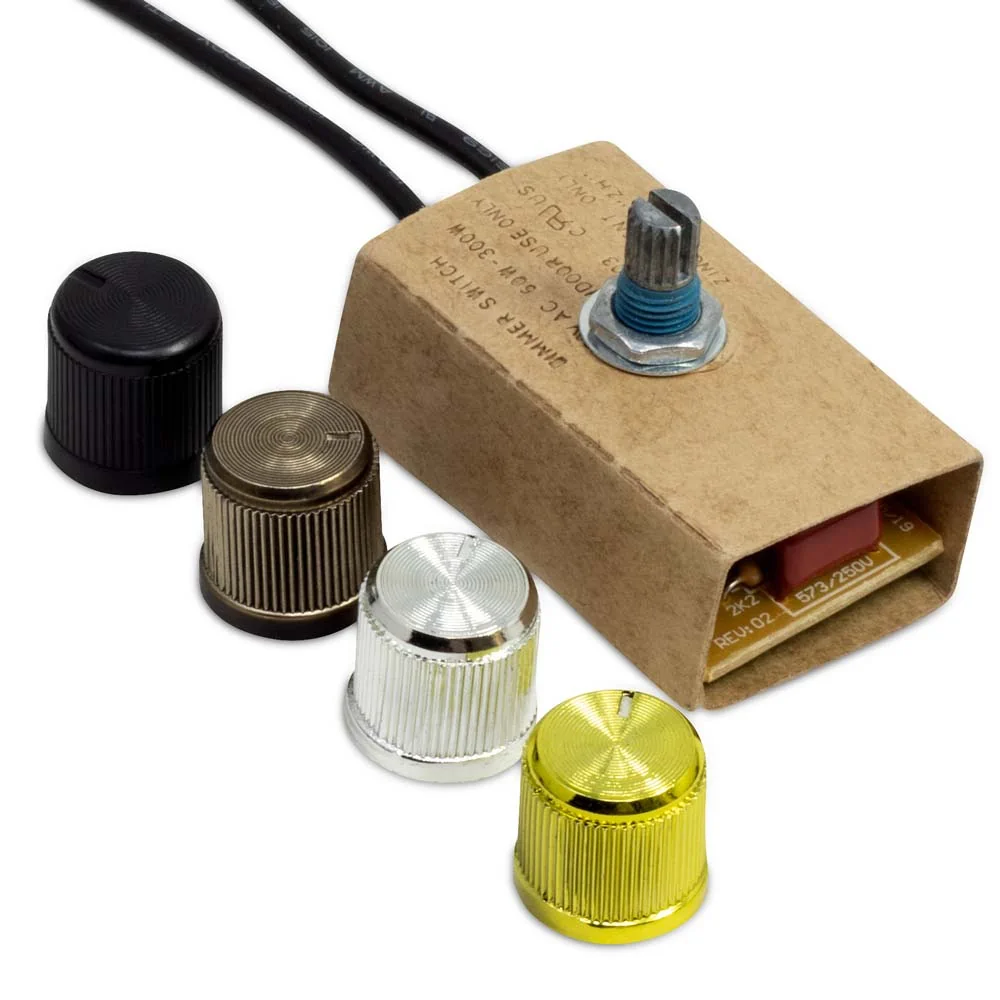

  • Turn knob available in Gold, Silver, Antique Gold, Antique Brass, and Black


Zing Ear ZE-03 is an inline dimmer switch for table lamps that provides full range dimming with on/off settings. Zing Ear ZE-03 table lamp dimmer switch is UL approved therefore it can be safely integrated into any table lamp or light fixture in USA and Canada. It includes 2 wire leads; 5.5-inch each to allow versatile installation for various table lamps. ZE-03 is one of the highest reputable table lamp dimmer switches in the DIY market.

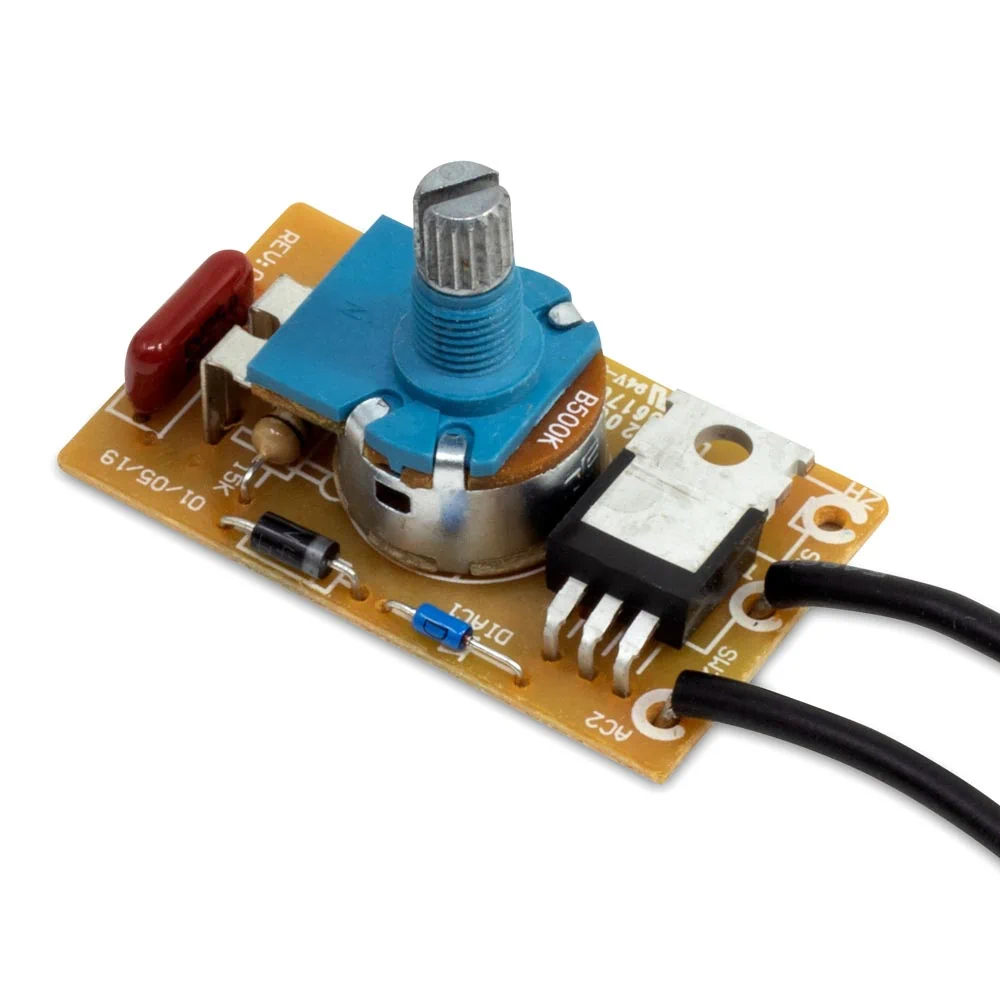

Zing Ear ZE-03 TRIAC dimmer has been tested with dimmable LED light bulbs and the results were sufficient. Non-dimmable LED light bulbs are not supported; they may not work at all or have symptoms of functioning improperly such as flickering or buzzing.

This lamp dimmer has an aluminum heat sink designed to prevent the risk of fire. For simple step-by-step installation, the wiring diagram is included.

Zing Ear ZE-03 Specifications

  • Supports incandescent and dimmable LED bulbs (non-dimmable bulbs are not supported)
  • Model number: ZE-03
  • Frequency: 60 Hz
  • Voltage: 120 VAC
  • Wattage: 60W – 300W
  • Function: Full range dimming with Single pole ON/OFF
  • Optional terminal for third wire

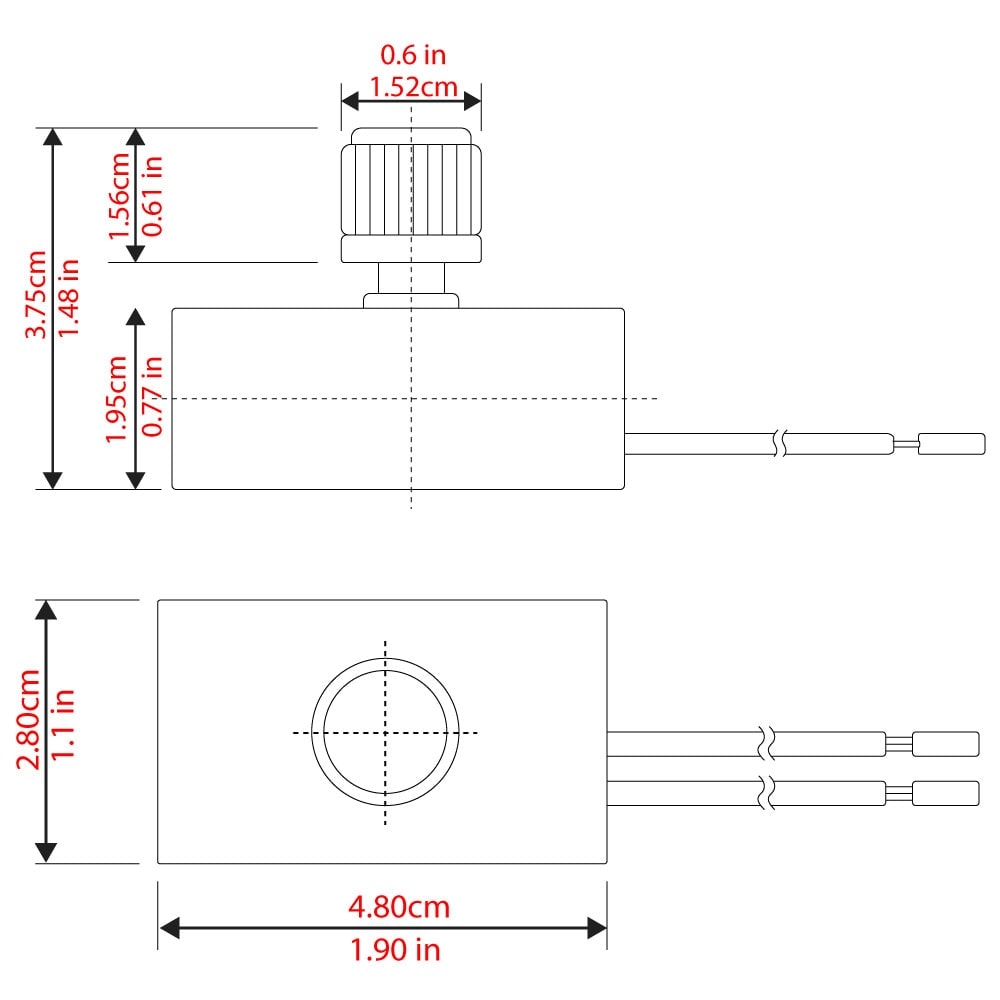

  • Product dimension (approximately): 2 x ¾ x 1 inch
  • Leads length: 5.5 inch
  • Insulation paper housing
  • Indoor use only
  • Finish: Turn knobs available in Gold, Silver, Antique brass and Black
  • UL approved (USA). see license here ATNZ2.E136609
  • UL approved (Canada). See license here ATNZ8.E136609
  • Comes with wiring diagram for easy installation
