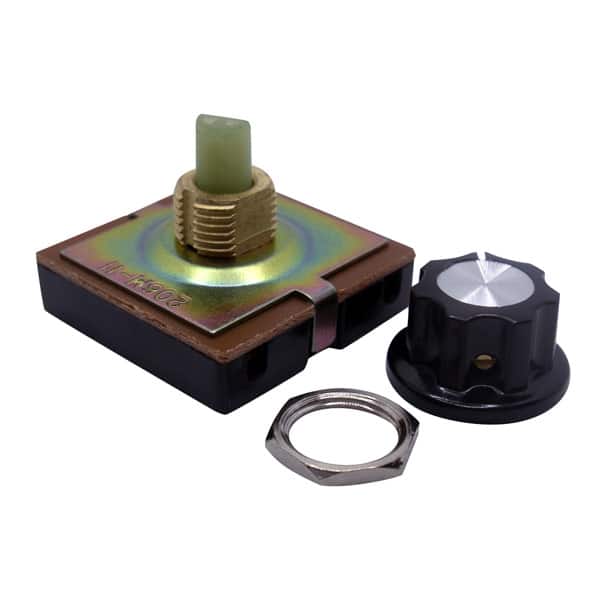

The Zing Ear ZE-206M is a control switch for fan speed and power. It is commonly used in electric space heaters and home appliances. Users can change fan speed with smooth and steady control.
The ZE-206M is built for regular use and long service life. It works well for repairs and new builds. Its compact size and smooth action make it a good choice for technicians and DIY users.
Zing Ear ZE-206M Applications & Common Uses
This selector switch is often used in equipment such as:
- Electric space heaters, including oil-filled and ceramic types
- Electric radiant heaters
- Fan and blower systems
- Drum and pedestal fans
- Massage equipment
- Humidifiers
- Range hoods, ovens, and ventilation units
- Griddles and countertop cookers
- Juicers and small kitchen tools
- Other fan-powered devices
Product Specifications
- Brand: Zing Ear
- Model Number: ZE-206M
- Part Number: ZE-206M-11

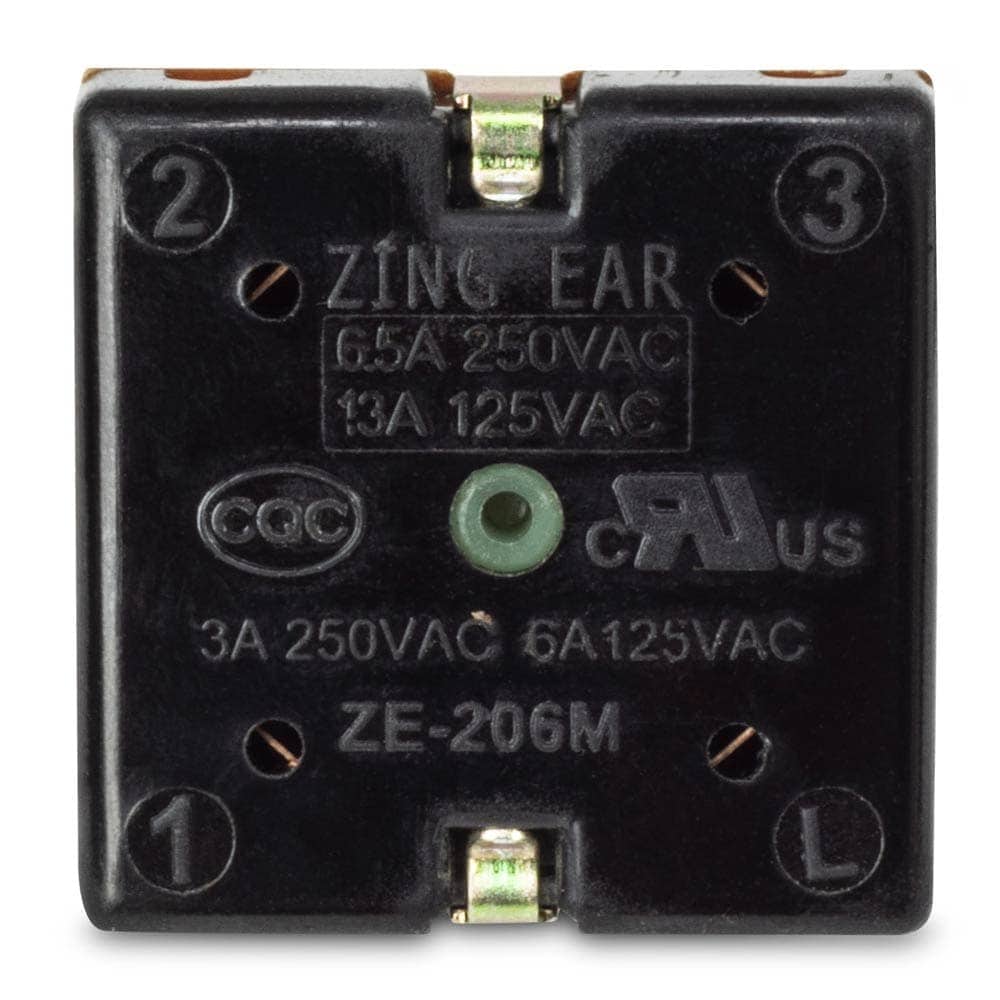

- 4 push-in contacts
- UL approved
- 4 switch positions: OFF, Low, Medium, High (OFF, L-1, L-2, L-3)
- Rated at 6A 125VAC / 3A 250VAC
Installed two commercial fans in my wife’s horse barn to help keep the flies down. Fans came with Zing Ear pull switches and the wife wanted the fans controlled by a single switch on the wall. The ZE-206M pin outs matched those of the pull switches, installed easy and is the perfect application to control both fans at once with a singe rotary switch. Best of all, she’s a happy camper!
