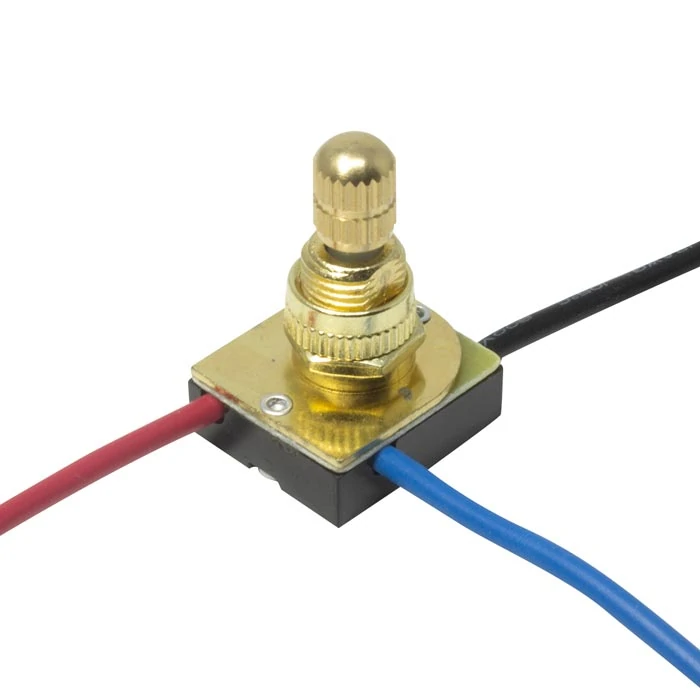

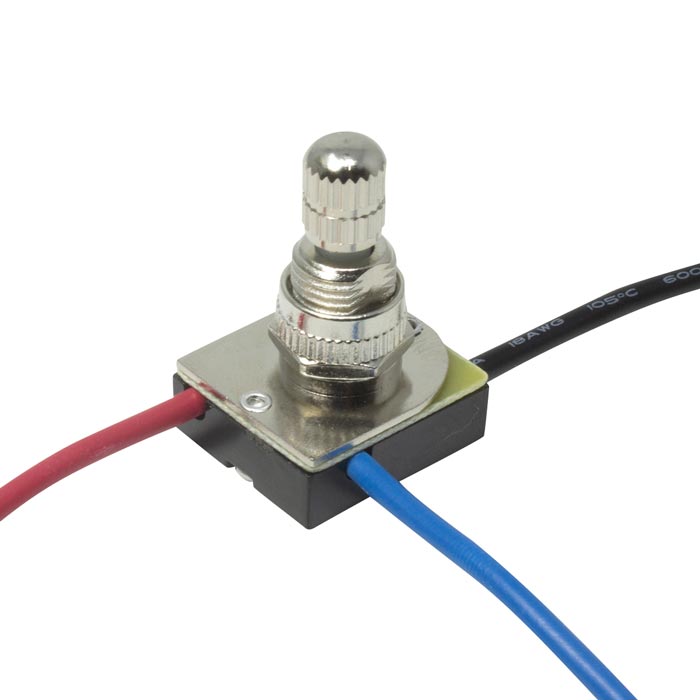

Zing Ear ZE-116m 3-wire light switch controls two light circuits This 3-way rotary light switch is compatible with 3/8in mounting hole and offers single pole triple throw (SP3T) circuitry.
ZE-116M is Compatible with
- Canal CS50-R Series
- Shine Top E218558
- GC Electronics 35-1857
Applications
- Table lamps
- Floor, torchiere (pole) lamps
- Ceiling canopy lights
- Can replace 3-speed fan switches that have 3 wires only
- Used in motels or hotels to control light fixtures above the bed
- Other applications that require such multi-position switch construction
Zing Ear ZE-116M Specifications
- Function: OFF, L-1, L-2, L-1-2 (OFF, Light 1 ON, Light 2 ON, Both lights ON, Both lights OFF)
- Model number: ZE-116M – ZE-116
- Control method: Turn knob
- Electrical Rating: 6A 125VAC – 3A 250VAC – 3A 125VL
- Compatible with Incandescent, Halogen, LED, and CFL light bulbs
- Material: Metal up shell
- Switch construction: 3-wire, 3-way, SP3T
- Leads length: 5 inches each (18 AWG)

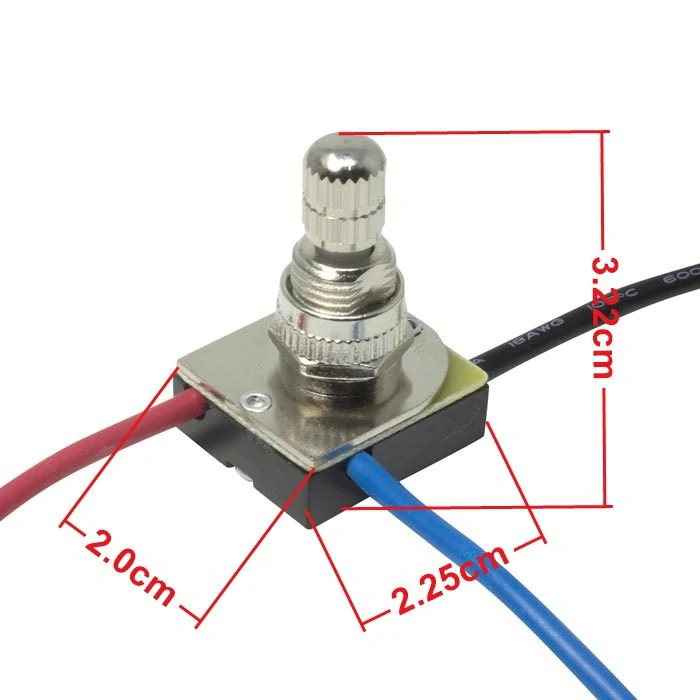

- Mounting hole required: Width=3/8 in Depth=3/8 in or less
