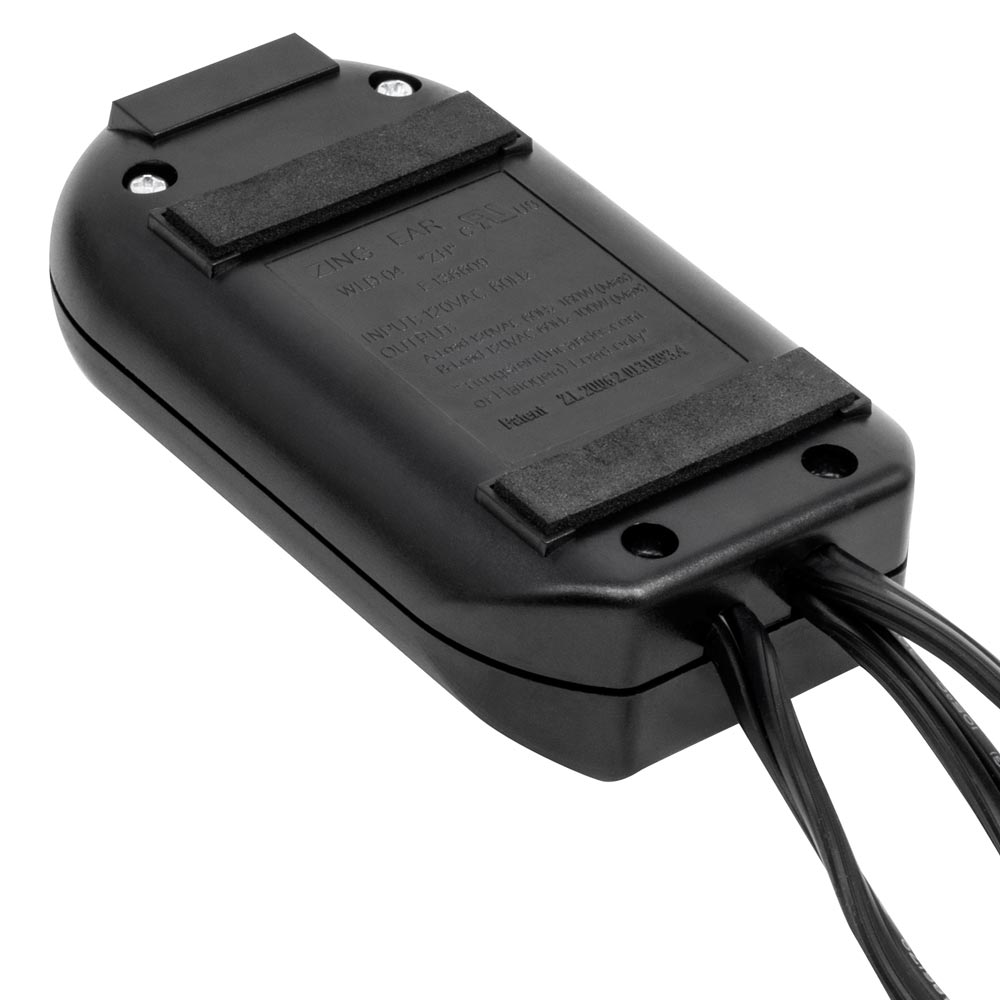

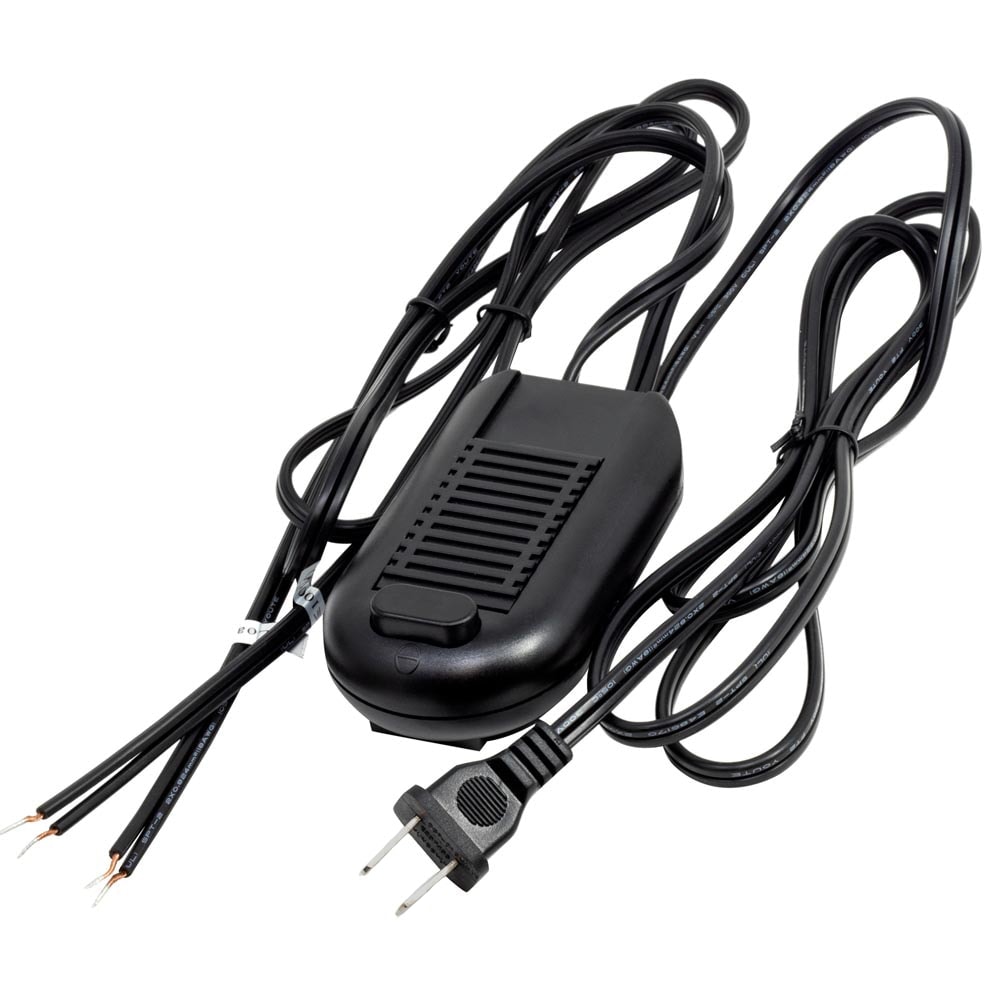

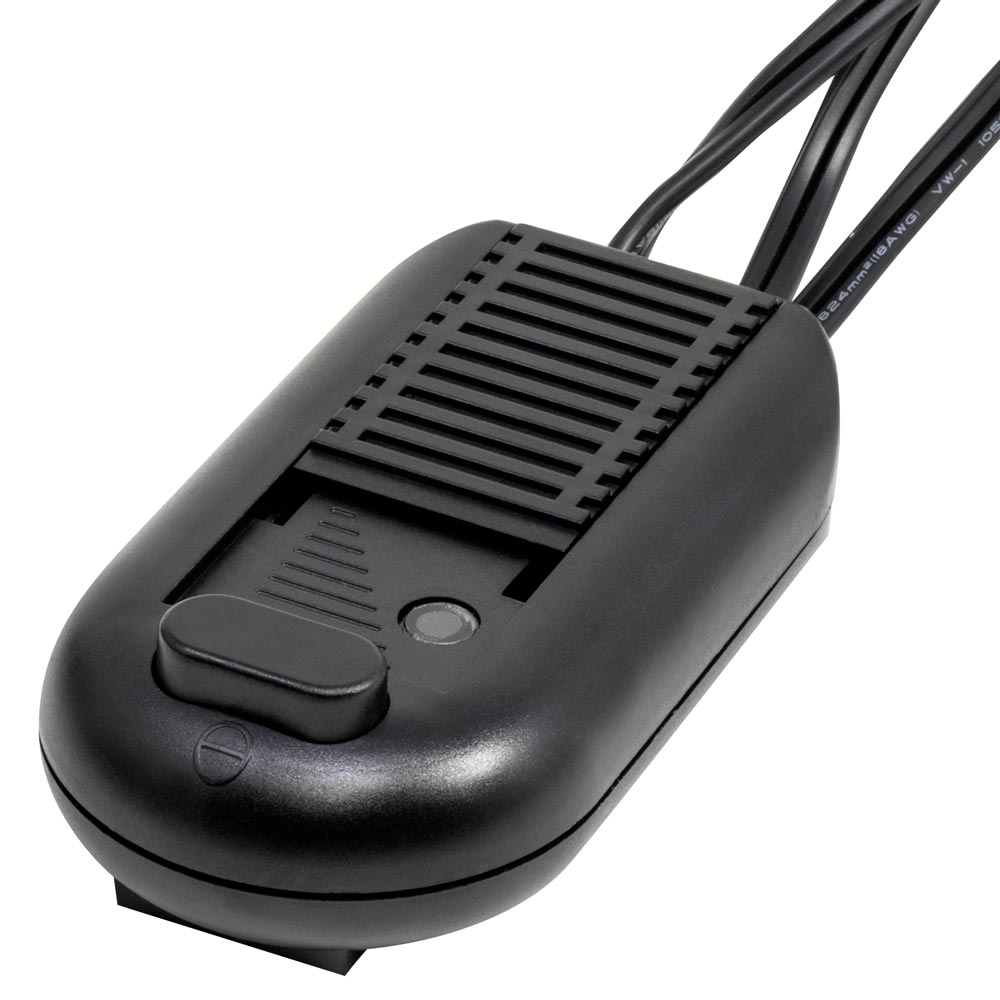

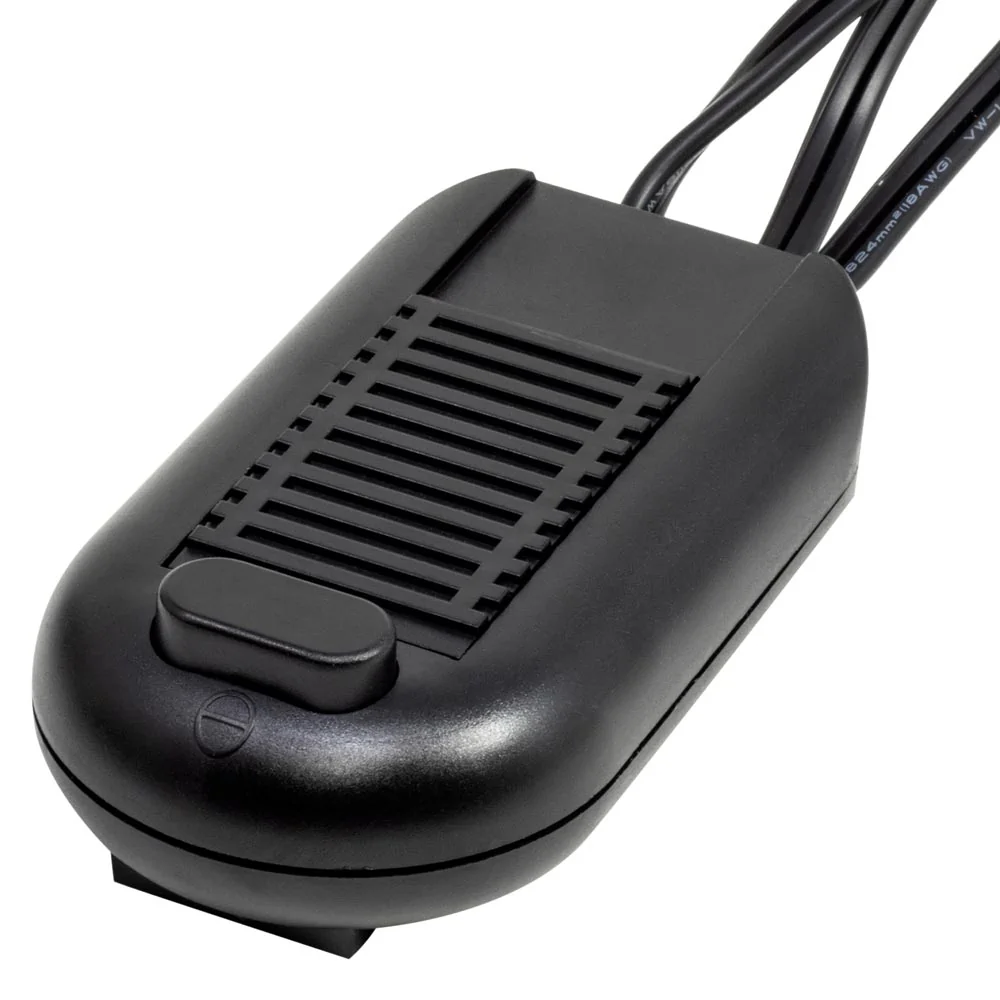

Zing Ear WLD-04 dimmer switch for incandescent and halogen Floor torchiere Lamp with two loads (circuits). The built-in Wattage limiting device allows light bulb to work within 0-180W, if the wattage exceeds 190W, it turns off.
Zing Ear WLD-04 Specifications
- Electrical rating (input): 120VAC 60Hz
- Electrical rating (output) A-load: 120VAC 60Hz 180W (Max.)
- Electrical rating (output) B-load: 120VAC 60Hz 100W (Max.)
- 18AWG SPT-2 Lamp Wire
- Two in one function switch
- For tungsten (incandescent and halogen) load only
- Built-in wattage limiting device (180W)
- Cord length (dimmer to plug): 5ft.
- Cord length (dimmer to lamp A-load): 3ft.
- Cord length (dimmer to lamp B-load): 3ft.
- UR (UL) recognized US and Canada E136609
Helpful Links
- FAQs
- Contact us page
Easy to wire at a fair price! Couldn’t have been any better!
It was simple to identify the correct switch I needed to replace by using the serial number from the old switch. It’s an exact match. Fair price and I had it in a week. Very happy.
I’m pleased with the repair of torch lamp
Exactly what I needed and quick shipping, thank you!
A floor lamp I enjoy quit working and I couldn’t find a replacement until I saw a similar one at Ceiling Fan Switch. I simply cut off the wires from the old switch and wired in the new one. I was able to lengthen the plug-in wire making it easier to use than originally. It works great and I’m glad to have it back.
Exactly what I needed to replace a malfunctioning switch on my torchiere lamp, and arrived very quickly after ordering. Glad the replacement unit was available.
Excellent customer service. Supper fast delivery.
Works great but the cord is way too short. About 18 inches shorter than the original.
Part arrived in time that was promised.
Part and repair worked out well.
No complaints!
The picture showed 1 set of wires out of the end mine came with 2 sets I did a work around not cool
