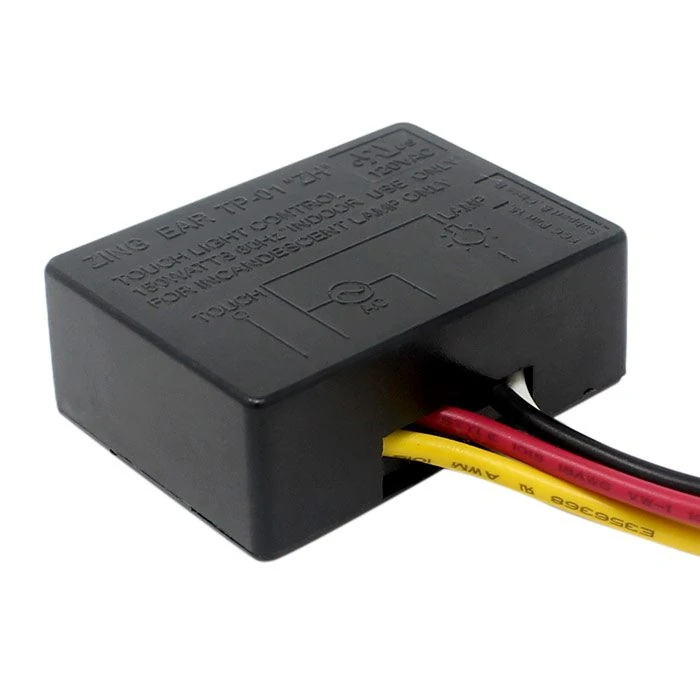

Zing Ear TP-01 is used to replace a broken touch lamp switch, or to convert any lamp (with a metal base) to a touch-activated lamp. It can also be implemented in any lighting system to add touch-sensitive switching features. To choose the required amount of light during day or night, the TP-01 touch lamp dimmer provides 3 levels of lighting: Low, Medium, and High.
This 3-way touch-sensitive lamp switch is a great way to save energy and money, simply by eliminating the need for buying a new expensive touch lamp or keep buying 3-way light bulbs.
TP-01 Replaces
- TD104
- OK-IC4A
- TA-306A
- 6503BC
- MT-1009A
- MT-1001
- TC-306S
Zing Ear TP-01 Specifications
- Model number: TP-01 ZH / TP-01F
- Commonly used in Touch-N-Glow (Touch and Glow) lamps
- Supports dimmable light bulbs only
- Electrical rating: 120VAC, 150W, 60Hz
- Function: Low, Medium, High, OFF
- Switch dimension: 1 7/8 x 1 3/8 x 5/8 inch – 55mm x 36.5mm x 19mm
- FCC rated: FCC part 15, Subpart B, Class B
- Indoor use only
Useful links
- FAQ page
- Zing Ear TP-01 lamp touch switch wiring diagram
- Do you have any questions about this lamp switch? send us an email via the contact us form
Love using your switch and very easy to install.
Turns out it’s hard to find good ones and many are junk. These were a bit on the expensive side but shipping was included and I had them in 3-4 days. They work fine – except they burn out with LED bulbs – my bad.
Switch worked, rewired and now it’s alive again. No issues.
Timely delivery. Easy to install.
It was so easy to order, and to replace. When I had taken the lamp apart I drew up a diagram as to which color wire went to which color wire. The instructions you sent with the part was so much easier!!! It was understood by me… who is not at all savvy in any way. Thank you for your help
