The CBB61 5-wire ceiling fan capacitor replacement (4.5µF + 5µF + 5µF) is a dependable replacement part for restoring proper 3-speed operation in ceiling fans. Its simple wiring design allows for quick installation, making it a convenient option for both homeowners and electricians. Built with high-quality materials, this capacitor delivers steady performance and extends the life of your fan by ensuring smooth and reliable speed control.

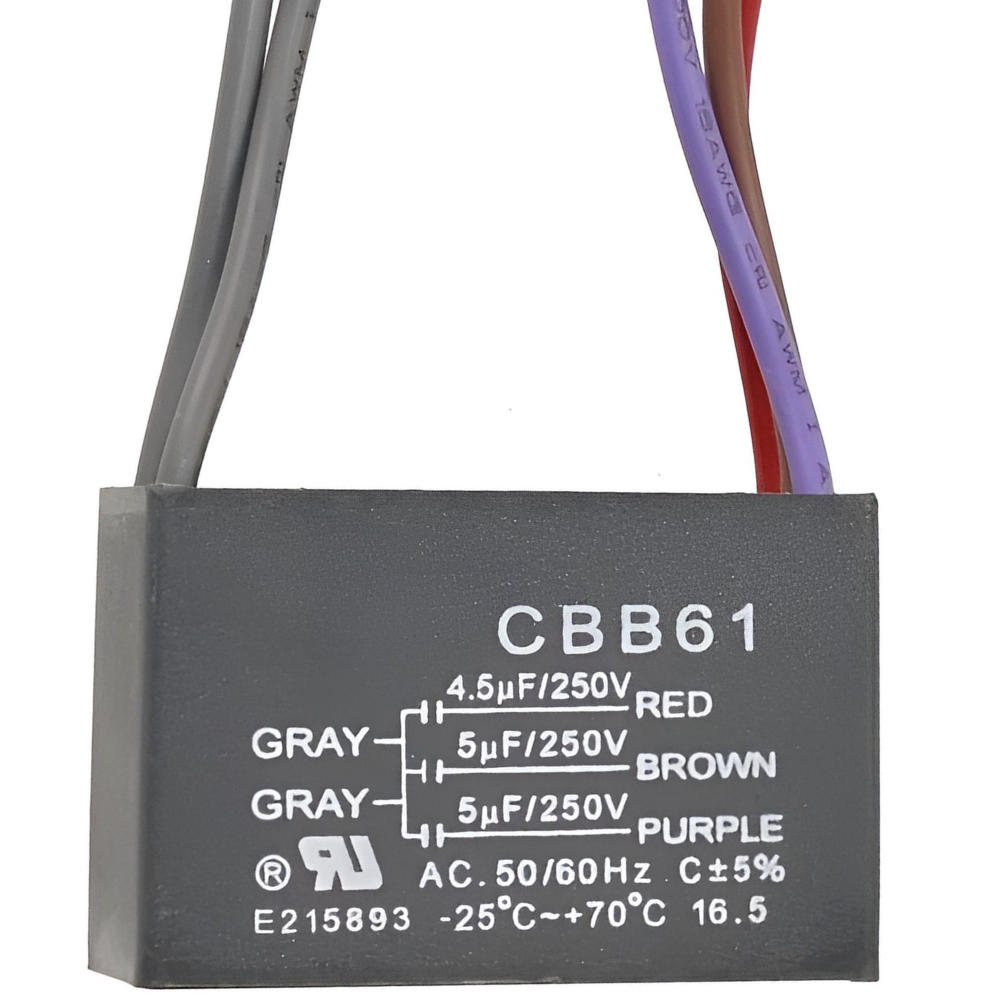

CBB61 5-Wire Ceiling Fan Capacitor Replacement Specifications
- Condition: New
- Part Number: CBB61
- Application: Ceiling fan motor speed control
- Total Wires: 5 (3 + 2)
- Wiring Configuration (right side):
- Red: 4.5uF / 250V
- Brown: 5uF / 250V
- Purple: 5uF / 250V
- Wiring Configuration (left side):
- Gray
- Gray
- Capacitance Tolerance: ±5%
- Frequency: 50/60Hz
Installation & Compatibility Guidelines
- The capacitor must have 5 wires: 3 on one side and 2 on the other
- Voltage rating should be equal to or higher than the original part
- Designed for AC ceiling fan applications only (not DC)
- Wire colors may differ from your old capacitor but will not affect function
