Zing Ear ZE-3B-2 Snap-In Receptacle Power Outlet 15A 125V


  • 15A 125V 14AWG – 10A 125V 16~18AWG
  • Conforms to NEMA 5-15R standard
  • UL approved – CSA certified


Zing Ear ZE-3B-2 receptacle is commonly used in lamps, ranges, electric stove tops, refrigerators, garage door openers, bathrooms and other applications that require panel-mount, flush-mount, or surface-mount installation. This heavy duty industrial AC power socket conforms to NEMA 5-15R standard in the United States.

Zing Ear ZE-3B-2 Specifications

  • Electrical rating: 15A 125V 14AWG – 10A 125V 16~18AWG
  • 3 Prong outlet

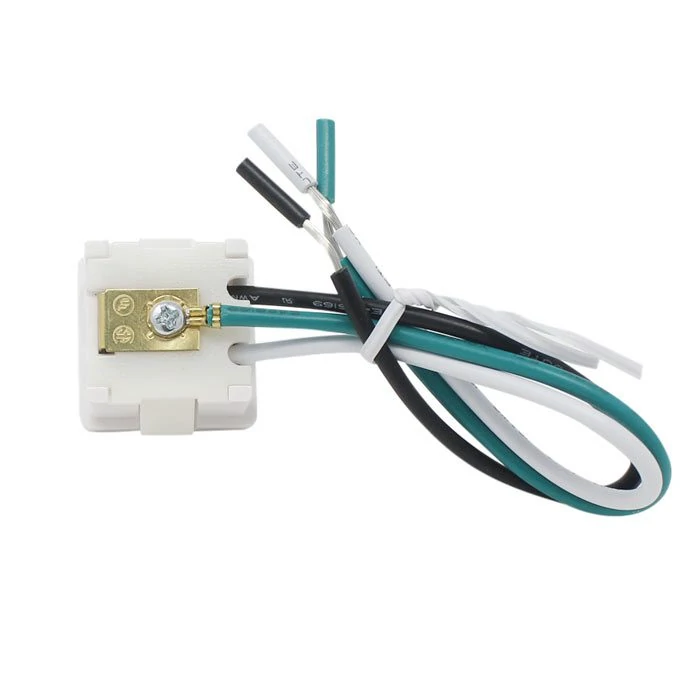

  • 5″ 18AWG leads

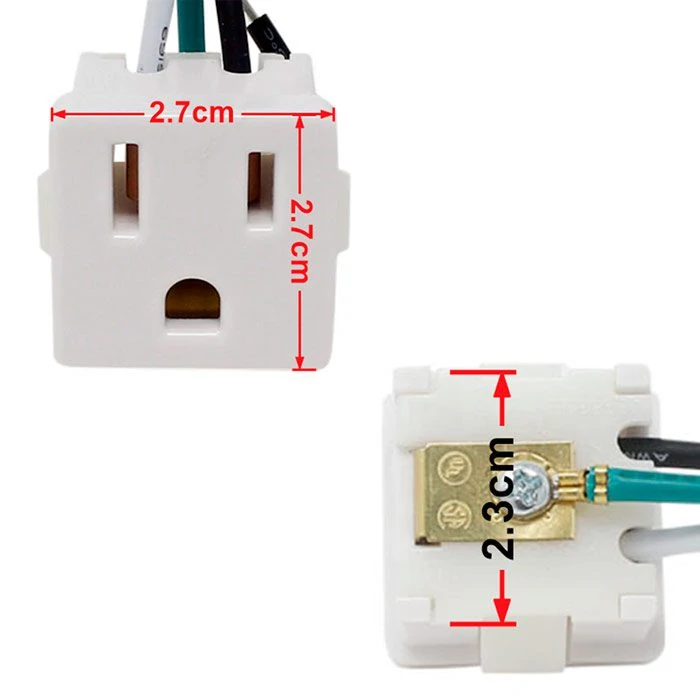

  • Dimension (outer plate): 1.06″H x 1.06″W
  • Dimension  (inside): 0.93″H x 0.93″W x 0.067″ (Depth)
  • UL approved
  • CSA certified
